A3 UV Printer UV3042A3 UV Printer UV3042A3 UV Printer UV3042

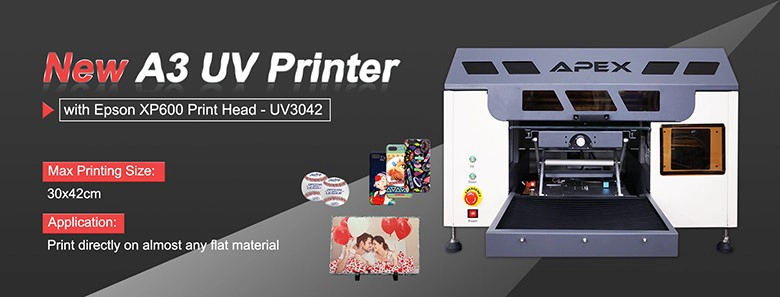

A3 UV Printer UV3042

  • Model No.: UV3042
  • Machine Type: Automatic, Flatbed, UV LED Lamp, Digital Printer
  • Max. Print Format:30x42cm
  • Max. Print Gap: 10cm
  • Ink Colors:KCMYWW
  • RIP Software: PhotoPrint RIP

Digital UV3042 Flatbed UV Printer Machine A3 UV Printer

The digital A3 UV printer is the latest UV machine of Apex Brand from Microtec company

This model is designed for the demands of small size UV printer but with high printing speed,which can print on flat material directlyWith UV light irradiatingduring printing procedure,images on object surface are dry fast and scratch resistance.








  1. *The UV light source can be adjusted
    *Auto height measurement
    *Power clean
    *Small-size UV printer but with high printing speed
    *Finished products is Water proof, UV proof, and Scratch proof
    *Finished product is suitable for outdoor use
    *Max printing Size: 30*42cm
    *With Carry handle
    *The printing machine can print white color
    *1pc Epson XP600 Print Head
    *1 Year Guarantee and lifetime maintain



     Water Cooling System: Water's high specific heat capacity, density, and thermal conductivity,  allows  water to transmit heat more easily. So it can more efficiently cool down UV LED light, in  order to prolong  its lifetime.



     UV Light Brightness Adjust: Adjust UV light Brightness to Fit Curing Needs.




 Model No.  UV3240
 UV Curing System  UV LED Water Cooling System
 Materials to Print  metal, plastic, glass, wood, ceramics, acrylic, leather, etc flat materials
 Max. Print Format 32*40cm)
 Max. Print Gap  10cm
 Power Consumption  280W
 Power Requirement  50/60HZ   220V(±10%)<20A
 Environment  20 ~ 28C  HR40-60%
 Print Head  Epson XP600
 RIP Software  SAi PhotoPrint DX
 Software Language English/Chinese/Spanish/French/Italian/Portuguese/German, etc
