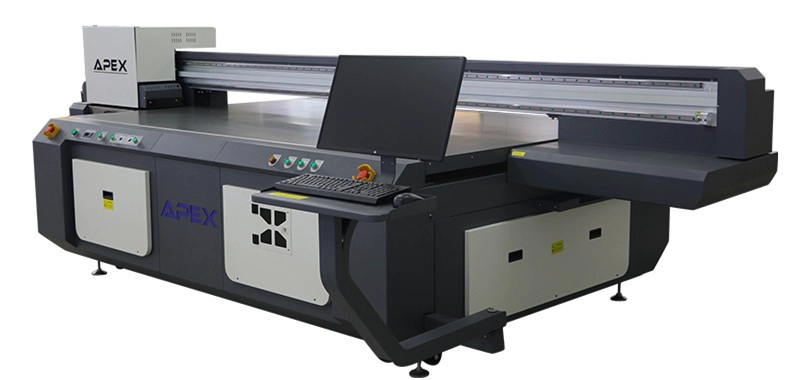

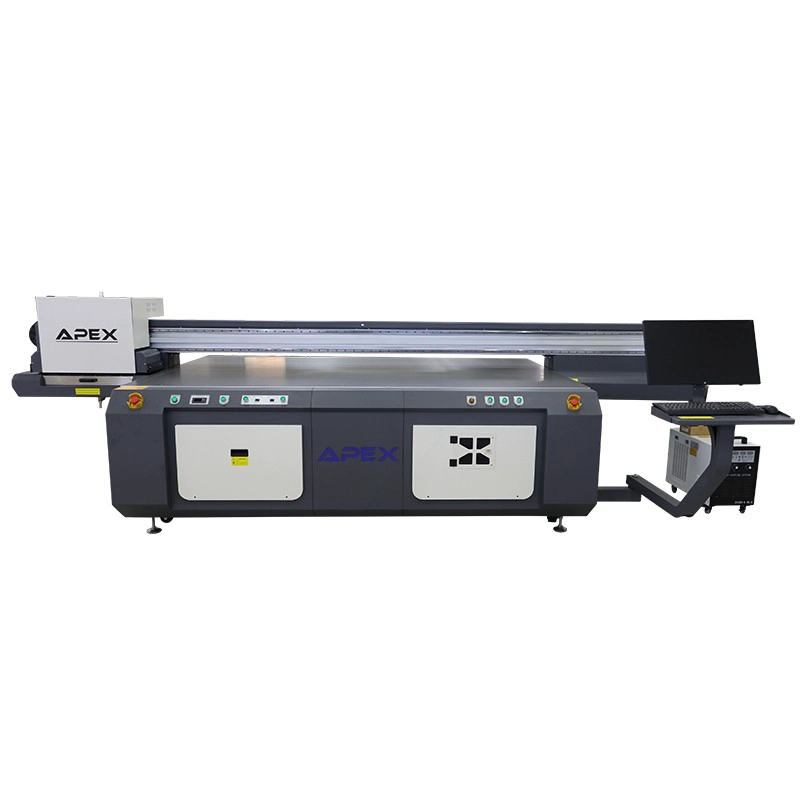

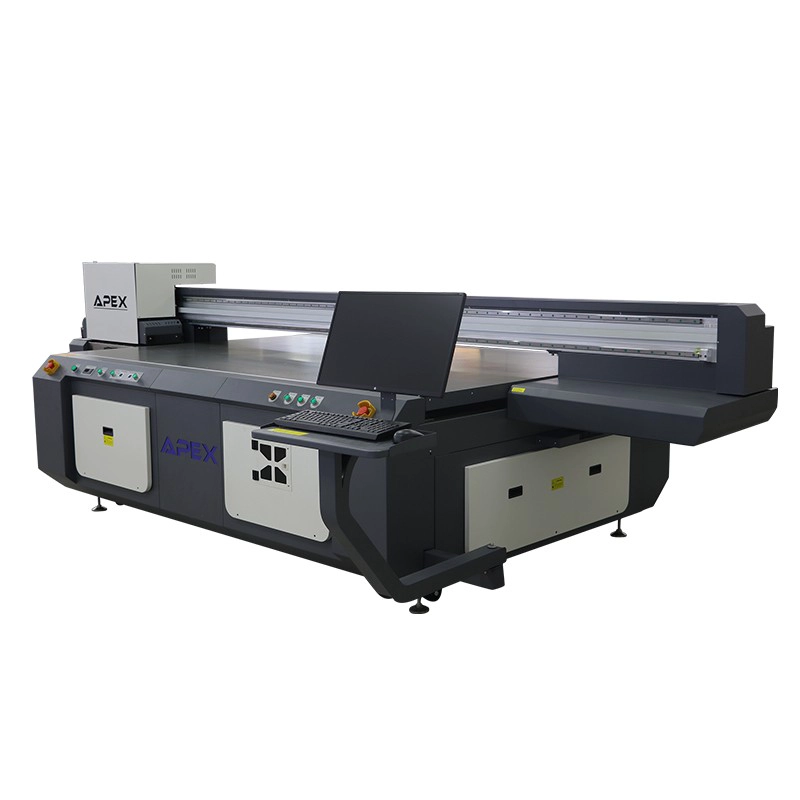

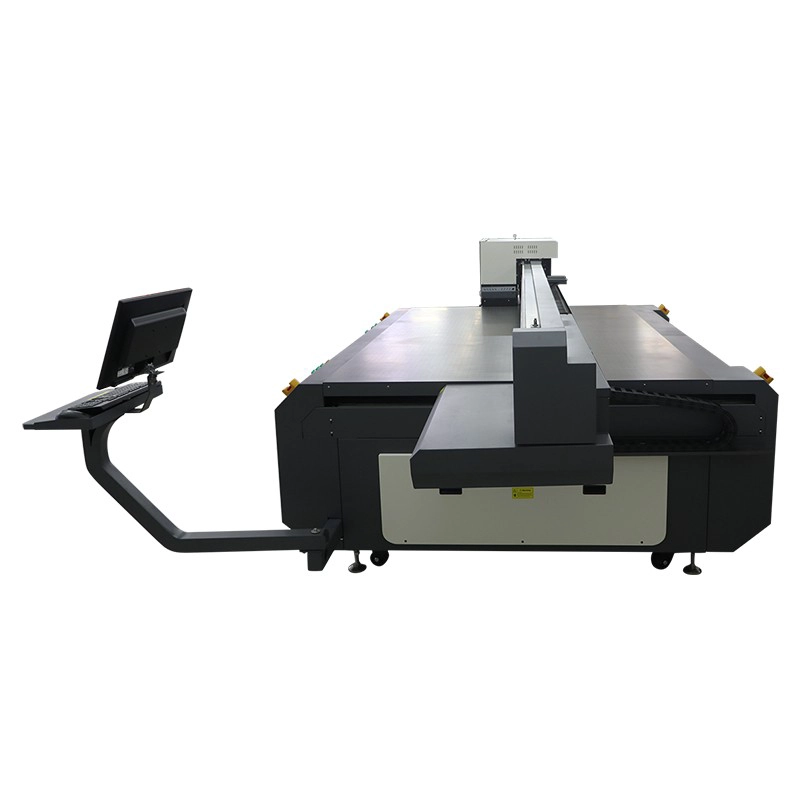

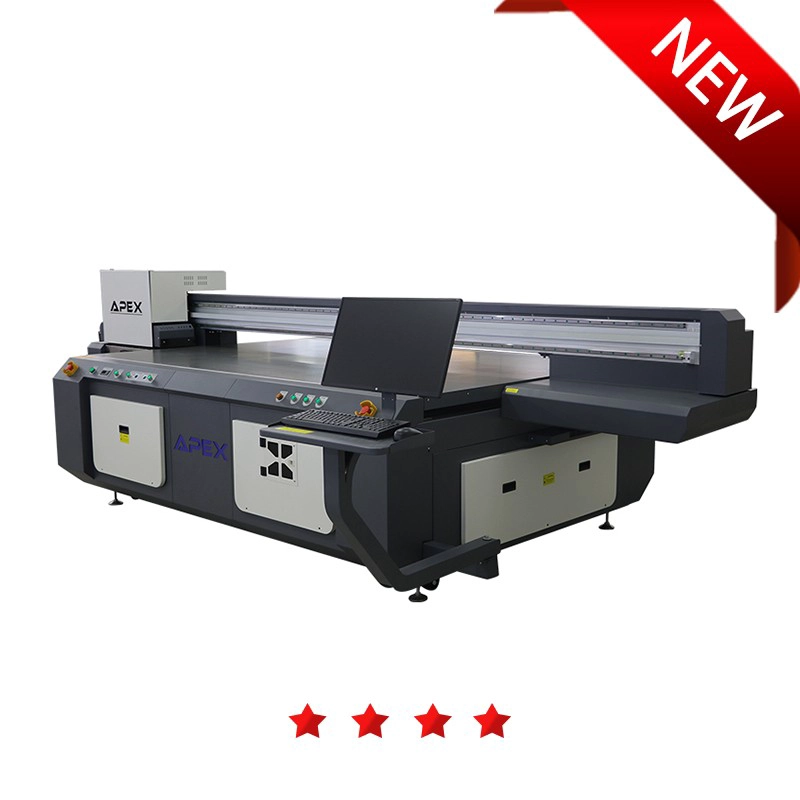

Digital Flatbed UV Printer RH1610
- Print Size: 1600*1000mm
- Print Head: Ricoh Gen5
- Print Head Quantity: 3~6
- Print Color: KCMYLcLmWWVV
- Print Height: 100mm
- Curing System: 2 * LED UV
- Print Format: TIFF, PSD, JPG, etc
- Interface: USB2.0

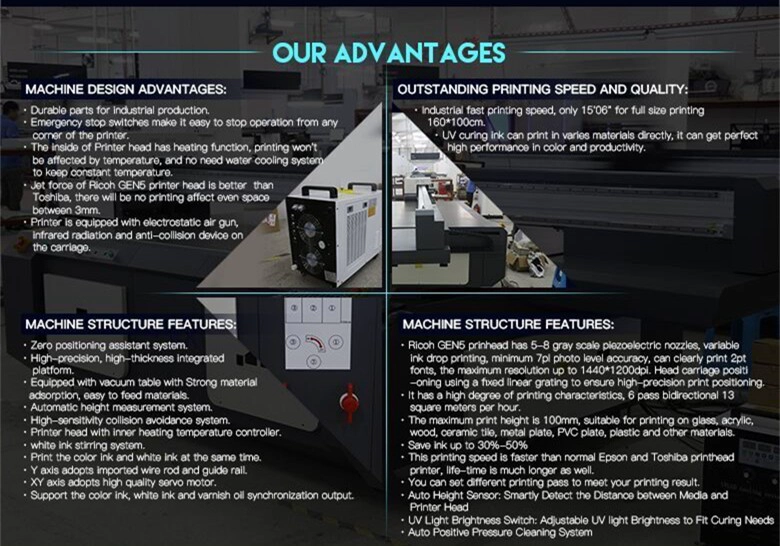

Machine design advantages:
· Durable parts for industrial production.
· Emergency stop switches make it easy to stop operation from any corner of the printer.
· The inside of Printer head has heating function, printing won't be affected by temperature, and no need water cooling system to keep constant temperature.
· Jet force of Ricoh GEN5 printer head is better than Toshiba, there will be no printing affect even space between 3mm.
· Printer is equipped with electrostatic air gun, infrared radiation and anti-collision device on the carriage.
Outstanding printing speed and quality:
· Industrial fast printing speed, only 15'06" for full size printing 160*100cm.
· UV curing ink can print in varies materials directly, it can get perfect high performance in color and productivity.

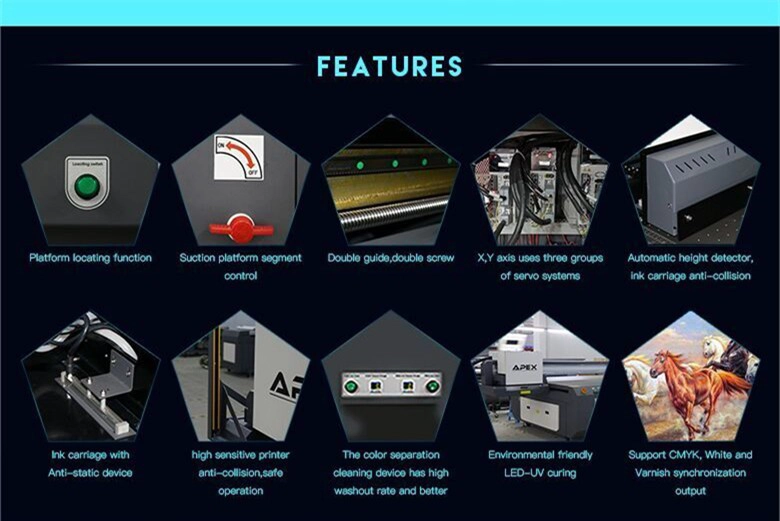

Machine structure features:
· Zero positioning assistant system.
· High-precision, high-thickness integrated platform.
· Equipped with vacuum table with Strong material adsorption, easy to feed materials.
· Automatic height measurement system.
· High-sensitivity collision avoidance system.
· Printer head with inner heating temperature controller.
· white ink stirring system.
· Print the color ink and white ink at the same time.
· Y axis adopts imported wire rod and guide rail.
· XY axis adopts high quality servo motor.
· Support the color ink, white ink and varnish oil synchronization output.
Printing quality and speed:
· Ricoh GEN5 prinhead has 5-8 gray scale piezoelectric nozzles, variable ink drop printing, minimum 7pl photo level accuracy, can clearly print 2pt fonts, the maximum resolution up to 1440*1200dpi. Head carriage positioning using a fixed linear grating to ensure high-precision print positioning.
· It has a high degree of printing characteristics, 6 pass bidirectional 13 square meters per hour.
· The maximum print height is 100mm, suitable for printing on glass, acrylic, wood, ceramic tile, metal plate, PVC plate, plastic and other materials.
· Save ink up to 30%-50%
· This printing speed is faster than normal Epson and Toshiba printhead printer, life-time is much longer as well.
· You can set different printing pass to meet your printing result.
· Auto Height Sensor: Smartly Detect the Distance between Media and Printer Head
· UV Light Brightness Switch: Adjustable UV light Brightness to Fit Curing Needs
· Auto Positive Pressure Cleaning System

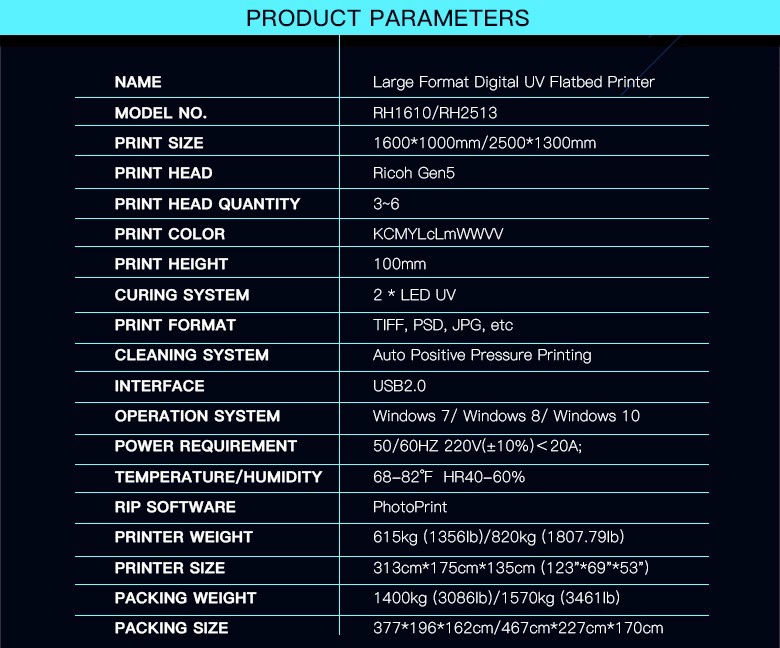

Model No. | RH1610 |

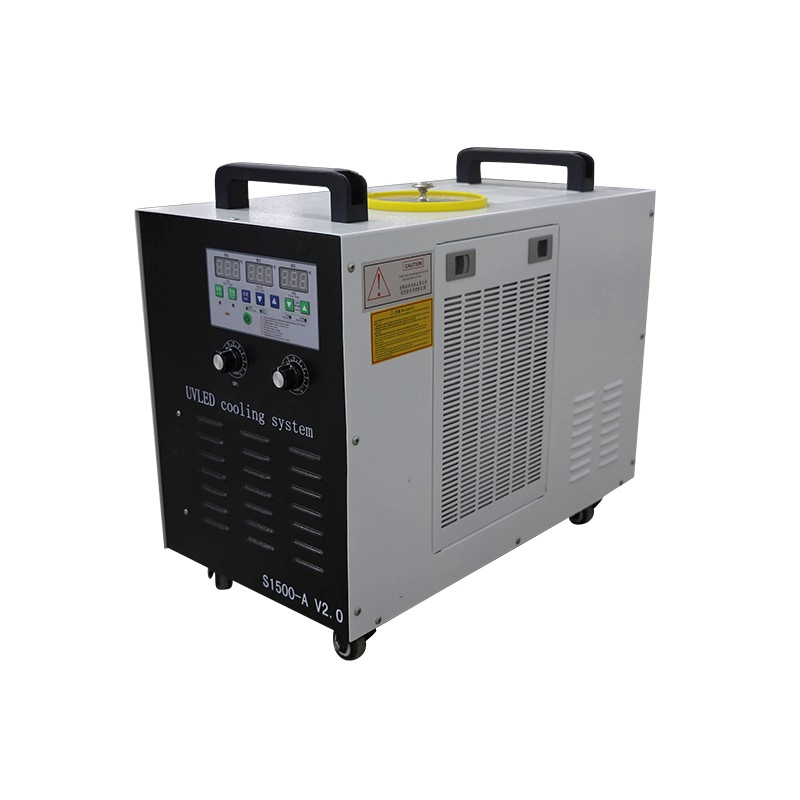

UV Curing System | UV LED Water Cooling System |
Materials to Print | metal, plastic, glass, wood, ceramics, acrylic, leather, pen, etc. |
Max. Print Format | 62.99"*39.37" (160*100cm) |
Max. Print Gap | 10cm(3.94'') |
Power Consumption | 3800W |
Power Requirement | 50/60HZ 220V(±10%)<20A |
Environment | 20 ~ 28C HR40-60% |
Print Head | Ricoh GEN5 (Nozzles 320X4), printer heads can be 3~6pcs. |
RIP Software | SAi PhotoPrint DX Plus |
Software Language | English/Chinese/German/Italian/Japanese/Korean/French/Finnish/Dutch/Portuguese/Spanish |
Operation System | Windows 7/Windows10 |
Ink Type | UV ink |

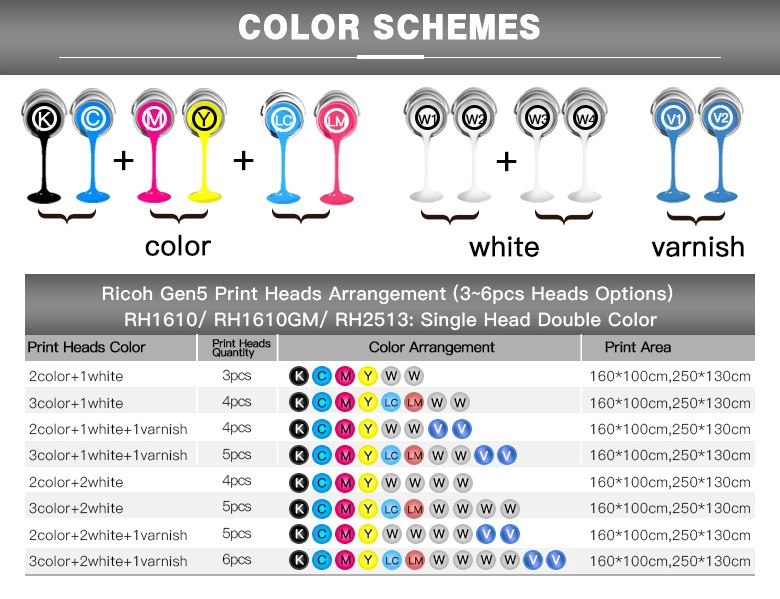

Ink Color | KCMYWW /KCMYLcLmWW /KCMYLcLmWWVV |
Ink Supply System | CISS Built Inside With Ink Bottle |
Interface | USB2.0 |
Machine Gross Weight | 1200kg |
Packing Dimension | 377*196*162cm |
Packing | Strong Wooden Package with Full Foam |
