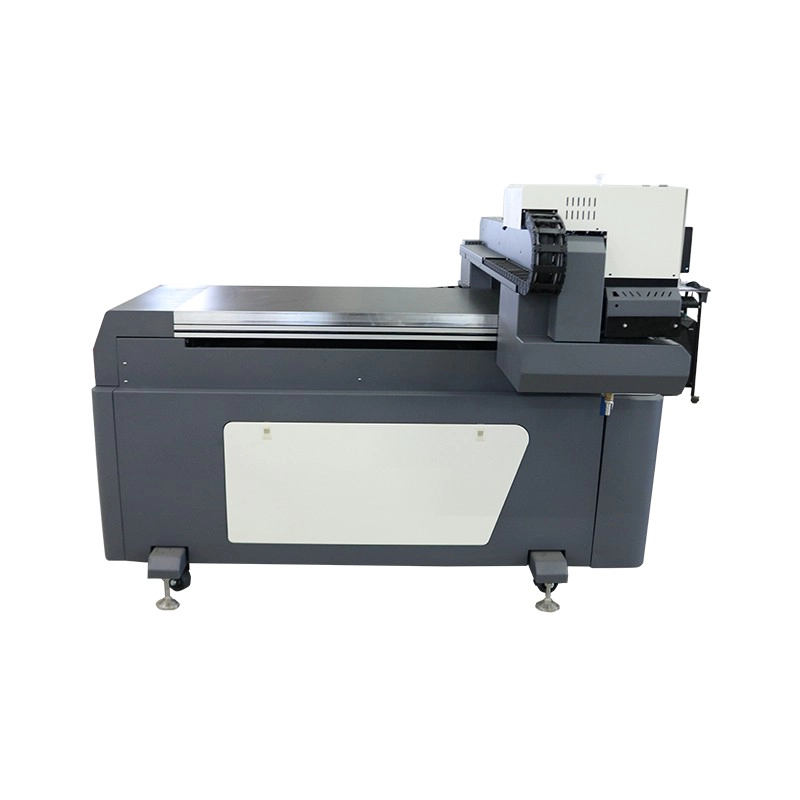

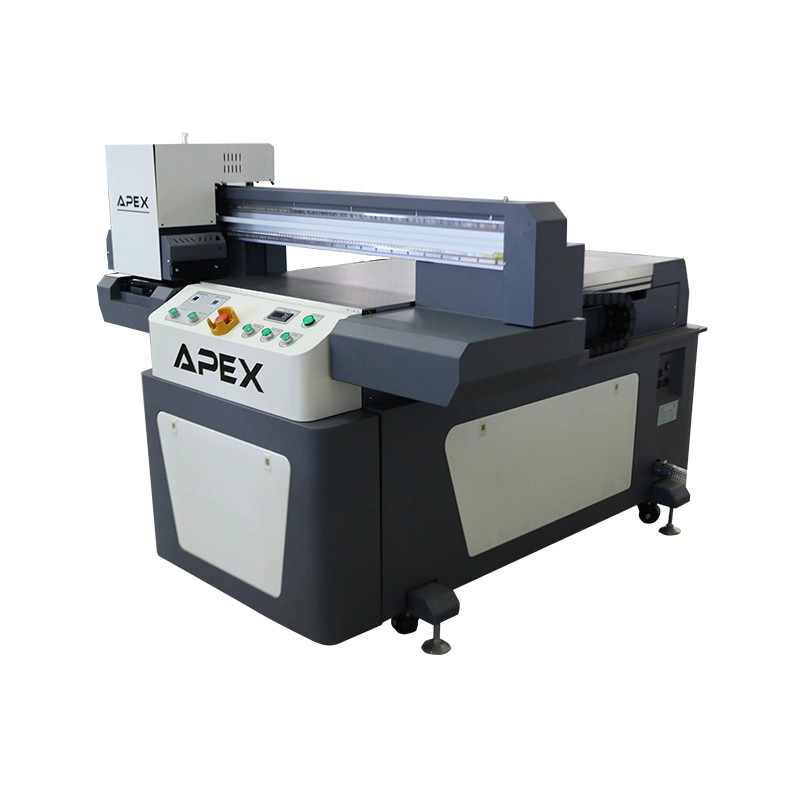

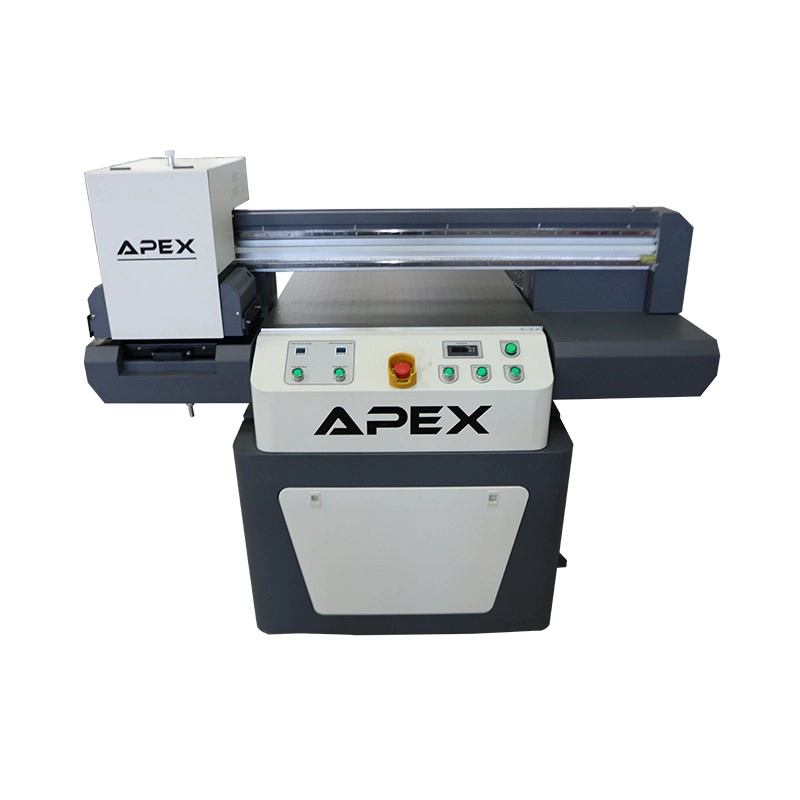

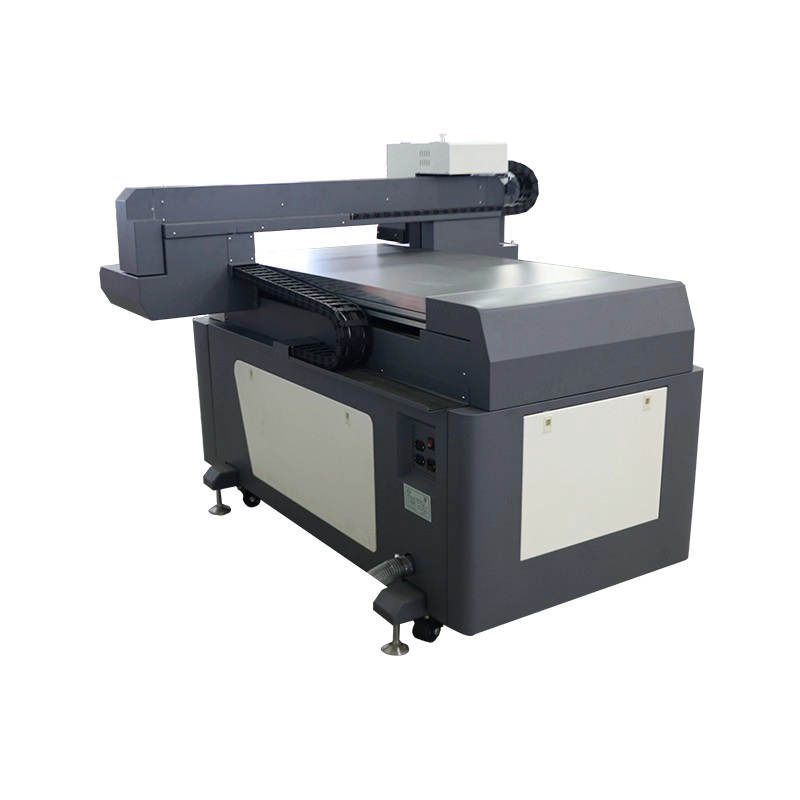

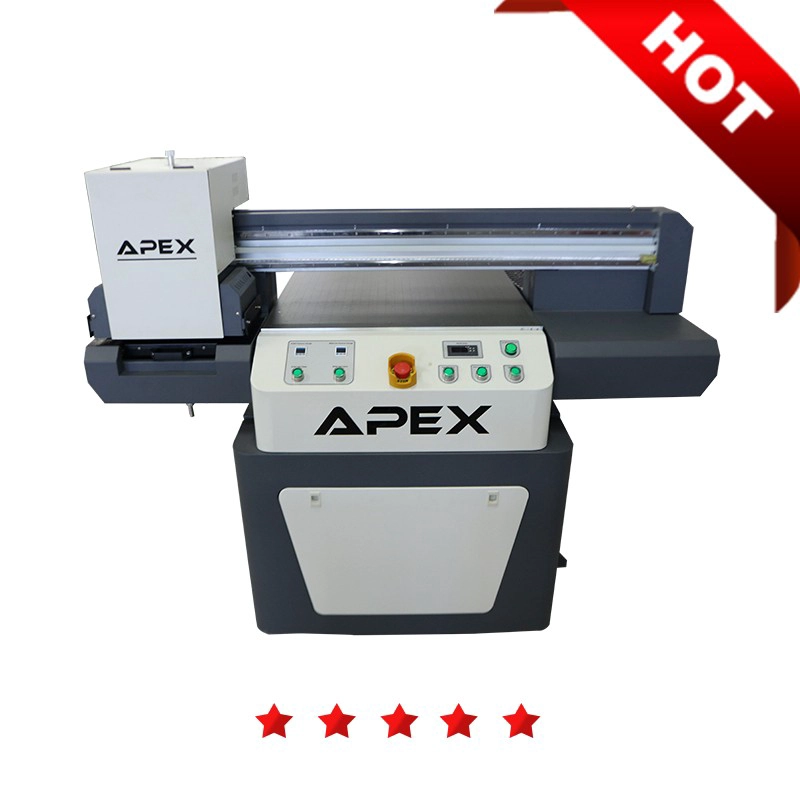

Digital Flatbed UV Printer UV7110
- Model No.: UV7110
- Machine Type: Automatic, Flatbed, UV LED Lamp, Digital Printer
- Max. Print Format: 27.95"*39.37"(71*100cm)
- Max. Print Gap: 10cm
- RIP Software: PhotoPrint RIP
- Software Language: English/ Chinese
APEX UV7110 digital large format UV Flatbed Printer is a special size suitable for both standard and large printing demands. It is installed with 3~4 Toshiba head and designed for industrial bulk production with high printing speed, which can print on almost any material directly. With UV light irradiating during printing procedure, images on object surface are dry fast and Scratch resistance.
This model use Toshiba CE4 printer heads which can print on any flat material &objects, like pens, acrylic, wood, metal, crystal, plastic, phone cases etc. With Toshiba CE4 printer heads, the printing quality is very perfect in details, even printing human face.
If you need machine at good price and want to have large format over 1m, UV7110 is highly recommended, whether you need an advertising PVC board uv printer, phone case uv printer, or acrylic uv printer, etc.
This model use Toshiba CE4 printer heads which can print on any flat material &objects, like pens, acrylic, wood, metal, crystal, plastic, phone cases etc. With Toshiba CE4 printer heads, the printing quality is very perfect in details, even printing human face.
If you need machine at good price and want to have large format over 1m, UV7110 is highly recommended, whether you need an advertising PVC board uv printer, phone case uv printer, or acrylic uv printer, etc.
The digital UV Flatbed Printer UV7110 is the latest UV machine in APEX company. This model is installed with 3~4 Toshiba head and designed for industrial bulk production with high printing speed, which can print on almost any material directly. With UV light irradiating during printing procedure, images on object surface are dry fast and Scratch resistance.

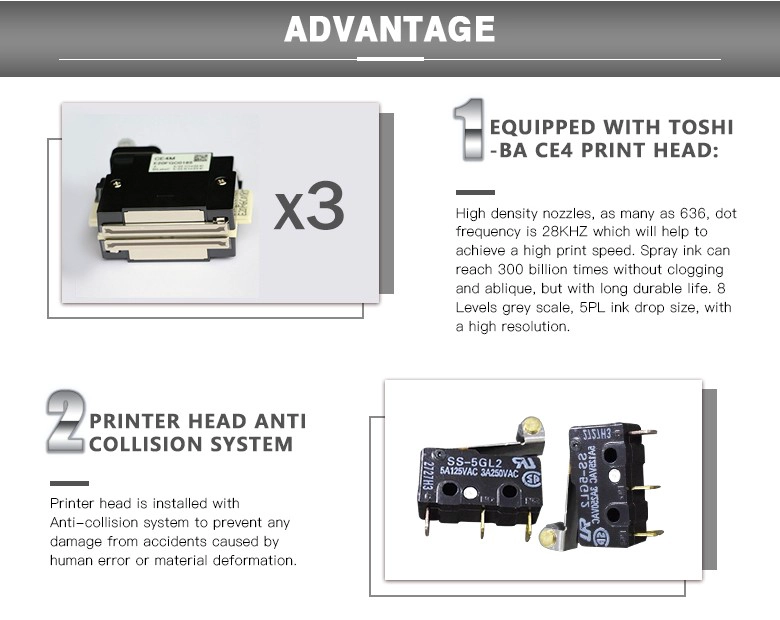

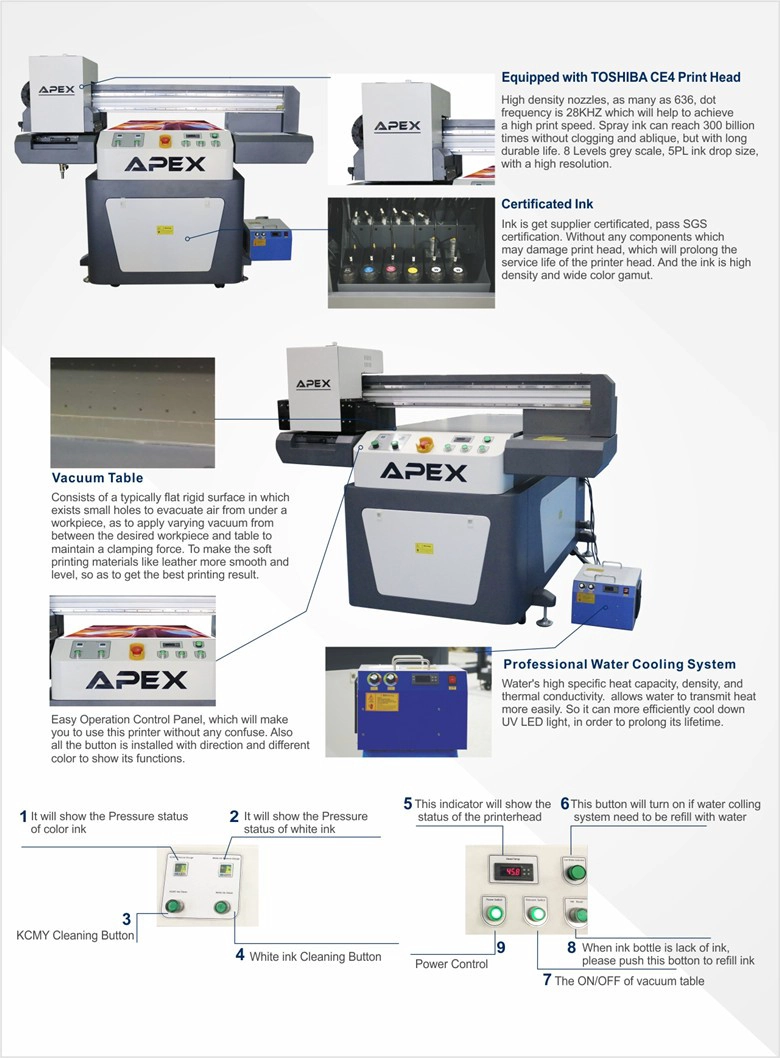

Equipped with TOSHIBA CE4 Print Head
High density nozzles, as many as 636, dot frequency is 28KHZ which will help to achieve a high print speed. Spray ink can reach 300 billion times without clogging and ablique, but with long durable life. 8 Levels grey scale, 5PL ink drop size, with a high resolution.
Certificated Ink
Ink is get supplier certificated, pass SGS certification. Without any components which may damage print head, which will prolong the service life of the printer head. And the ink is high density and wide color gamut.

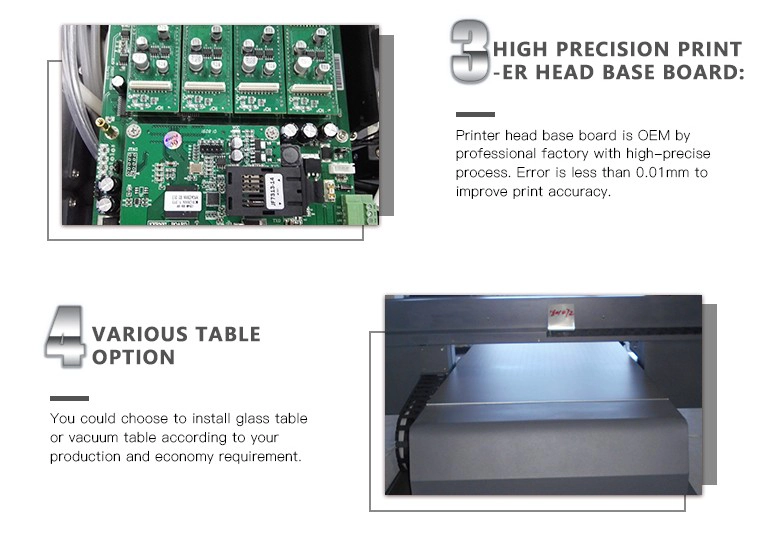

High Precision Printer Head Base Board
Printer head base board is OEM by professional factory with high-precise process. Error is less than 0.01mm to improve print accuracy.
Stable Accessories
All accessories of the ink system are certified and stable working, without any chemical reaction with ink.
Professional RIP software
User interface is simple, easy to understand and operate. Efficient workflow, and excellent image handing, rich color management tools, professional color processing.
Printer Head Anti-Collision System
Printer head is installed with Anti-collision system to prevent any damage from accidents caused by human error or material deformation.
Various table option
You could choose to install glass table or vacuum table according to your production and economy requirement.
Equipped with TOSHIBA CE4 Print Head
High density nozzles, as many as 636, dot frequency is 28KHZ which will help to achieve a high print speed. Spray ink can reach 300 billion times without clogging and ablique, but with long durable life. 8 Levels grey scale, 5PL ink drop size, with a high resolution.
Certificated Ink
Ink is get supplier certificated, pass SGS certification. Without any components which may damage print head, which will prolong the service life of the printer head. And the ink is high density and wide color gamut.
High Precision Printer Head Base Board
Printer head base board is OEM by professional factory with high-precise process. Error is less than 0.01mm to improve print accuracy.
Stable Accessories
All accessories of the ink system are certified and stable working, without any chemical reaction with ink.
Professional RIP software
User interface is simple, easy to understand and operate. Efficient workflow, and excellent image handing, rich color management tools, professional color processing.
Printer Head Anti-Collision System
Printer head is installed with Anti-collision system to prevent any damage from accidents caused by human error or material deformation.
Various table option
You could choose to install glass table or vacuum table according to your production and economy requirement.

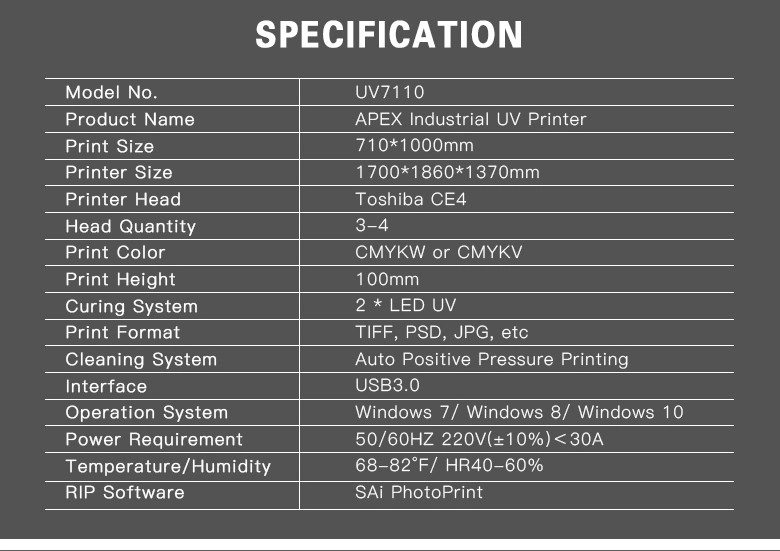

| Model No. | UV7110 |
| UV Curing System | UV LED Water Cooling System |
| Materials to Print | metal, plastic, glass, wood, ceramics, acrylic, leather, pen, etc. |
| Max. Print Format | 27.95"*39.37" (71*100cm) |
| Max. Print Gap | 10cm(3.94'') |
| Power Consumption | 1600W |
| Power Requirement | 50/60HZ 220V(±10%)<20A |
| Environment | 20 ~ 28C HR40-60% |

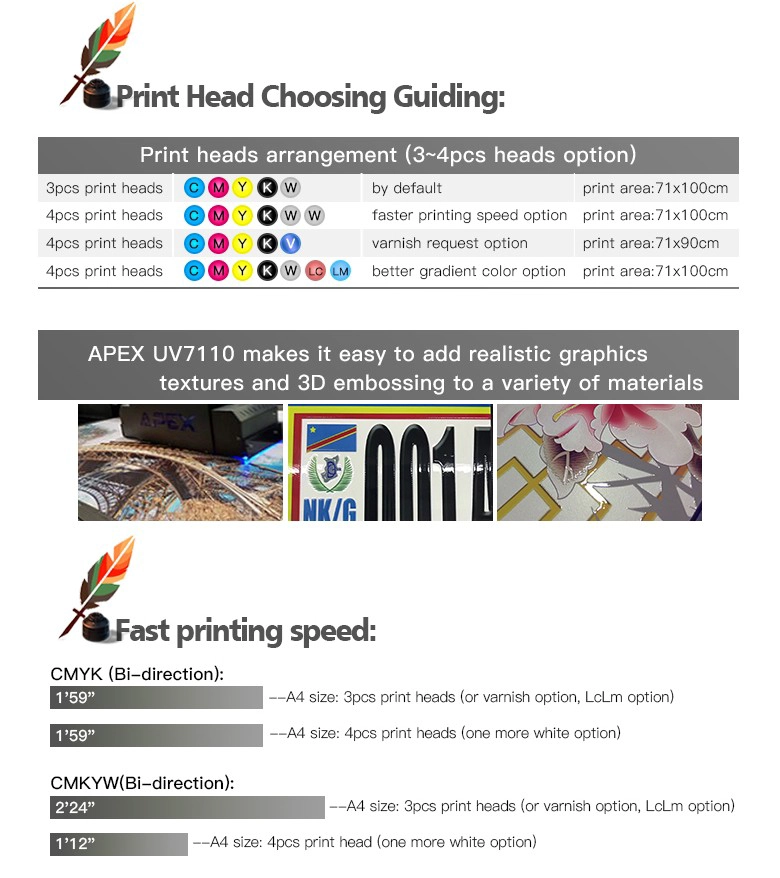

| Print Head | Toshiba CE4 (Nozzles 318X2), printer heads can be 3~4pcs. |
| RIP Software | SAi PhotoPrint DX |
| Software Language | English/Chinese/German/Italian/Japanese/Korean/French/Finnish/Dutch/Portuguese/Spanish |
| Operation System | Windows 7 /Windows 8 /Windows10 |
| Ink Type | UV ink |
| Ink Color | KCMYWW/KCMYWWWW /KCMYLcLmWW /KCMYWWVV |
| Ink Supply System | CISS Built Inside With Ink Bottle |
| Interface | USB3.0 |
| Machine Gross Weight | 785kg |
| Packing Dimension | 204*195*166cm |
| Packing | Strong Wooden Package with Full Foam |
This Apex UV7110 UV printer is ideal with good price and can directly print on any flat materails with fast speed and high precision.
Microtec/Apex's main objective is to support all our customers, who can manage their APEX UV printers activities without interruption. So Apex offers FREE SPARE PARTS with a quantitative order and the following guarantee:
* Free lifetime technical support online for all apex printers.
* One year warranty for the whole machine excluding printer heads
* Three months warranty on the consumable parts like dampers, cap tops, etc.
* Five professional English engineer available to provide onsite service if customer needed(customers pay onsite service charge, bear tickets and accommodation)
