Digital UV Printer UV1610GM

Digital UV Printer UV1610GM

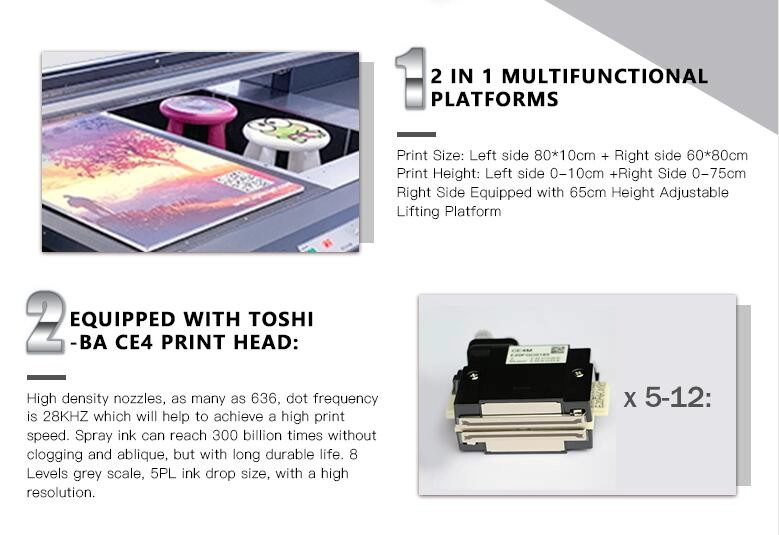

  • 2 in 1 multi-function platforms
  • Print size: left side 800*1000mm + right side 600*800mm
  • Print height: left side 0~100mm + right side 0~750mm
  • Right side equipped with 65cm height adjustable lifting platform
  • Print Size: 1600*1000mm
  • Print Head: Toshiba CE4 print head
  • Print Head Quantity: 5-12pcs optional

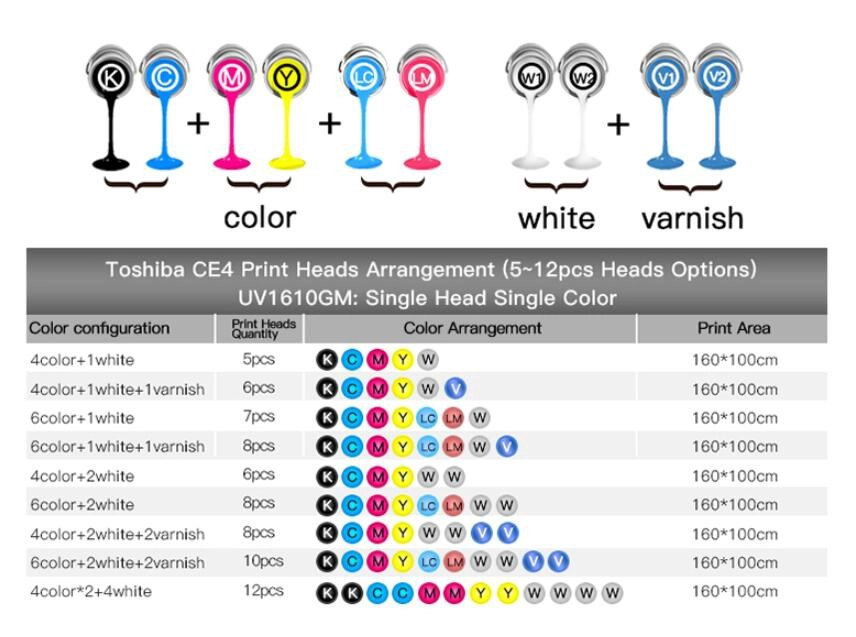

  • Print Color: KCMYW / KCMYLcLm+W / KCMYLcLm+W+V
  • Curing System: 2 * LED UV

Machine design advantages:
· Can print 0~75CM height materials

· APEX brand new 2 in 1 multi-function platforms UV printer offers you completely new personalized UV printing experience

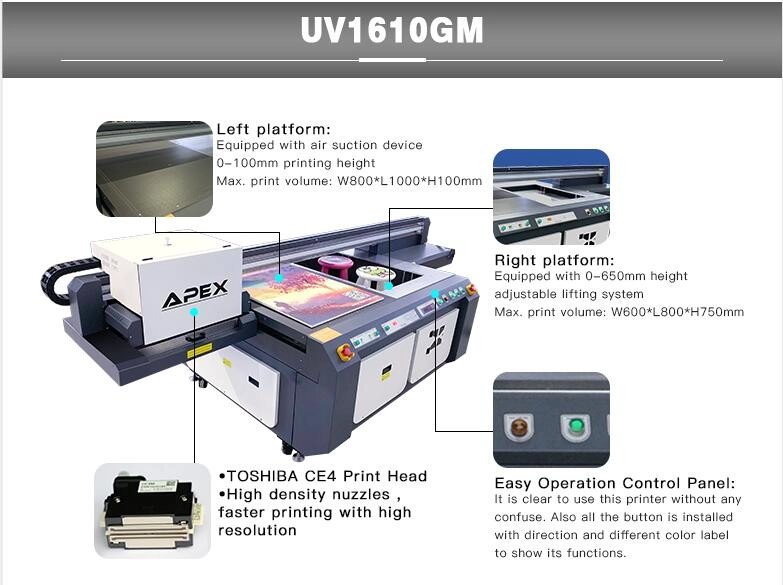

· Left platform equipped with air suction device 0-100mm printing height (Max. print volume: W800*L1000*H100mm)

· Right platform equipped with 0-650mm height adjustable lifting system (max. print volume: W600*L800*H750mm)

· Durable parts for industrial production.
· Emergency stop switches make it easy to stop operation from any corner of the printer.
· The inside of Printer head has heating function, printing won't be affected by temperature, and no need water cooling system to keep constant temperature.


Outstanding printing speed and quality:
· Industrial fast printing speed,
· UV curing ink can print in varies materials directly, it can get perfect high performance in color and productivity.


Machine structure features:
· Print Size:  Left Side 800*1000mm +  Right Side 600*800mm

· Print  Height:  Left Side 0~100mm +  Right Side 0~750mm

· Right side equipped with 65cm height adjustable lifting platform

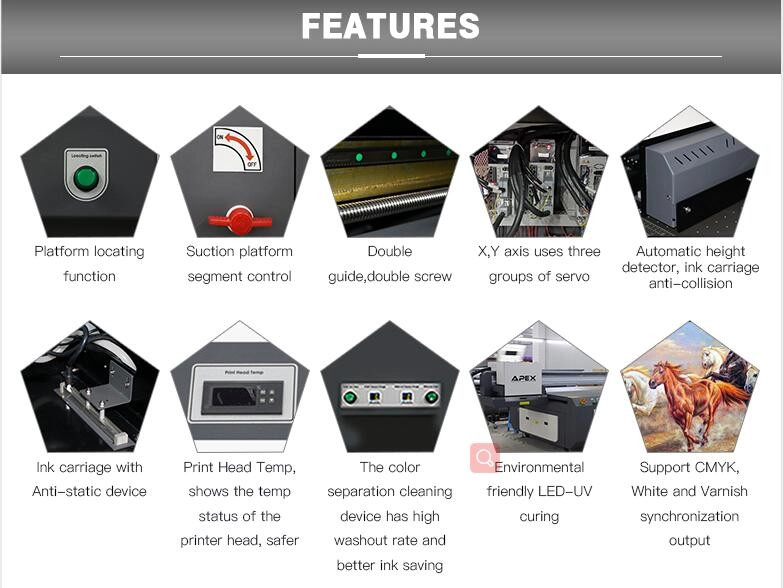

· Zero positioning assistant system.
· High-precision, high-thickness integrated platform.
· Equipped with vacuum table with Strong material adsorption, easy to feed materials.
· Automatic height measurement system.
· High-sensitivity collision avoidance system.
· Printer head with inner heating temperature controller.
· white ink stirring system.
· Print the color ink and white ink at the same time.
· Y axis adopts imported wire rod and guide rail.
· XY axis adopts high quality servo motor.
· Support the color ink, white ink and varnish oil synchronization output.



 Model No.  UV1610GM
 Print Size  Left Side 800*1000mm/ Right Side 600*800mm (1600*1000mm in Total)
 Max. Print Height  Left side H100mm
 Right side H100mm+H650mm Height Adjustable=H750mm
 Multi-function Print Platform ·2 IN 1 Multi-function Platform
·Left Platform Equipped with Air Suction Device
·Right Platform Equipped with 650mm Height Adjustable Lifting System
 Print Head Toshiba CE4 Print Head, 5-12pcs optional
 UV Curing System  UV LED Water Cooling System
 Materials to Print  Luggage, table, metal, plastic, glass, wood, ceramics, acrylic, leather, pen, etc.
 Power Consumption  3800W
 Power Requirement  50/60HZ   220V(±10%)<20A
 Environment  20 ~ 28C  HR40-60%
 RIP Software  SAi PhotoPrint DX Plus
 Software Language  English/Chinese/German/Italian/Japanese/Korean/French/Finnish/Dutch/Portuguese/Spanish
 Operation System  Windows 7/Windows8/Windows10
 Ink Type  UV ink
 Ink Color  KCMYW/KCMYLcLm+W/KCMYLcLm+W+V
 Ink Supply System  CISS Built Inside With Ink Bottle
 Interface  USB2.0
 Machine Size  313*181*143cm
 Machine Weight  1080kg
 Machine Gross Weight  1480kg
 Packing Dimension  377*199*176cm
 Packing  Strong Wooden Package with Full Foam
