HOVER Heat Press

HOVER Heat Press

  • Model No.: MAX-20HOVER
  • Platen Size: 40x50cm
  • Feature: Specially designed for curing ink
  • Usage: Sublimation Transfer
  • Automatic Grade: Semi-Automatic
  • Voltage: 220V
  • Power: 1.8KW
  • Gross Weight: 60kg
  • Packing Size: 54*88*57cm

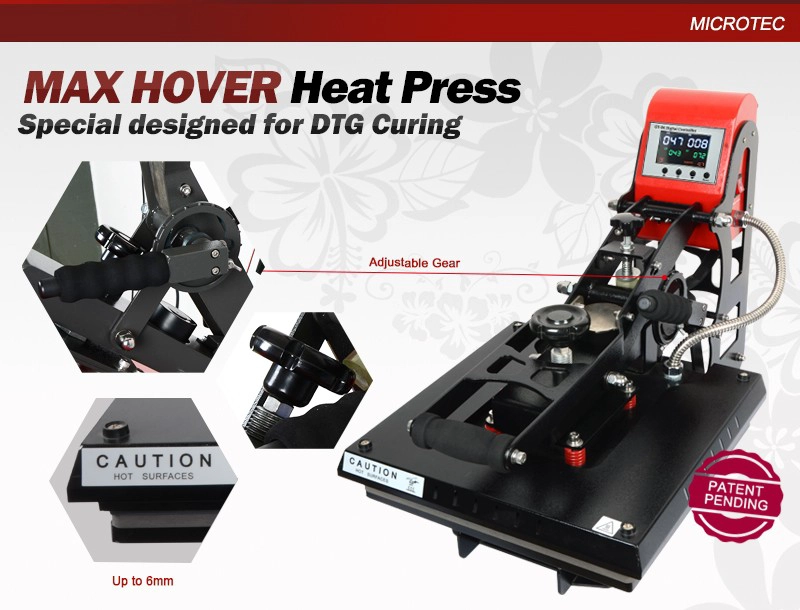

The Hover Heat Press has all of the features of the Auto Open Clam with one unique difference: the upper platen hovers over the garment to ensure brighter colors and a stronger bond between ink and the garment.

With this breakthrough technology, you never have to worry about direct-to-garment ink residue on your platen. Can also be used for any type of traditional heat-applied graphics.



*Magnetic Assist Lock Down

*Auto Open Feature

*Digital Time & Temperature Controls

*Cycle Counter for Tracking Production Quantities

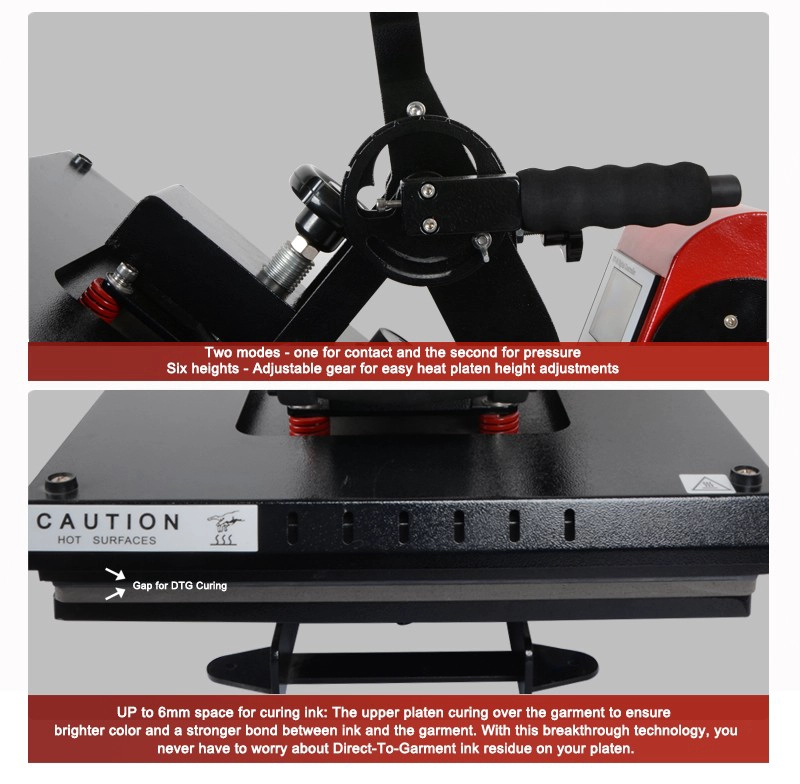

*Two modes - one for contact and the second for pressure

*Generates maximum pressure

*Under-center pressure platen

*CE approved

*Quick-change lower platen

*Non-stick coated heater - stress relieved to prevent warping

*Cast-in tubular element every 2.5" to eliminate cold spots

*3/16" laser-quality Iron framework

*Heavy-duty pin & bushing pivot points

*3/4" upper flotation heat platen

*Wide opening for easy layout

*Available in 110v or 220v

*Space-saving clamshell design

*Specially designed for curing ink


 Machine Type  Hover, Auto Release, Clamshell
 Platen Size  16"*20"(40*50cm)
 Controller  GY-06 Digital Time & Temp. Control
 Cycle Counter for Tracking Production Quantities
 Cycle Done Alarm
 Max. Hover Space  Up to 10mm
 Printable Articles  Up to 5mm Thickness
 Opening Angle  50 degrees
 Gas Spring Control  Yes
 Voltage  220V
 Power  1800W
 Time Range  0-999 Sec
 Maximum Temp  225 C
 Temperature Accuracy  ±0.5%
 Packing Size  54*88*57cm
 Gross Weight  60kg



1. Specially designed for curing inks on DTG printed t-shirts.

2. Normal Heat Transfer, Sublimation Transfer Printing.
