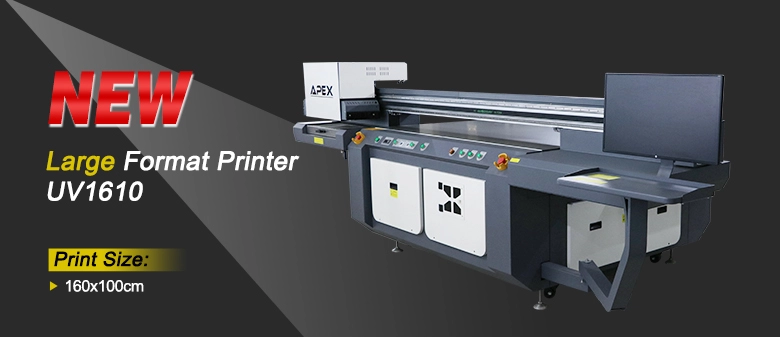

Digital Flatbed UV Printer UV1610
- Model No.: UV1610
- Max. Printing Size: 1600*1000mm
- 1.Different material printing available
- 2.Finished products is scratch resistance
- 3.Large format

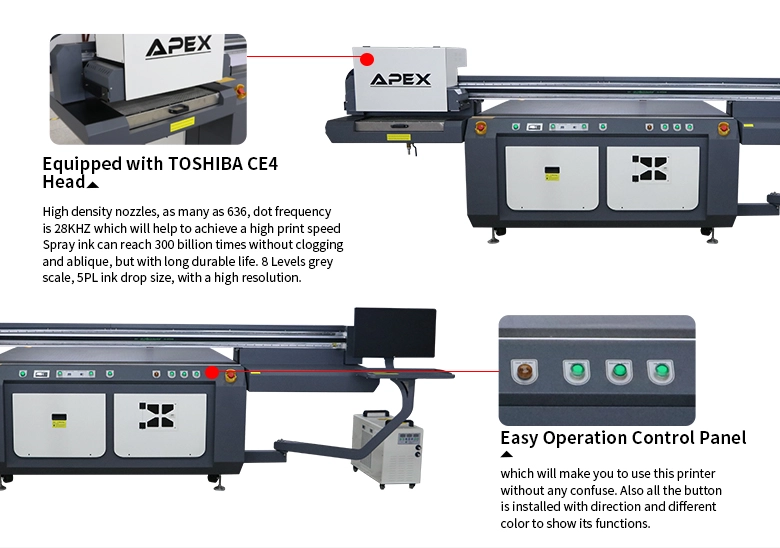

Equipped with TOSHIBA CE4 Print Head
High density nozzles, as many as 636, dot frequency is 28KHZ which will help to achieve a high print speed. Spray ink can reach 300 billion times without clogging and ablique, but with long durable life. 8 Levels grey scale, 5PL ink drop size, with a high resolution.

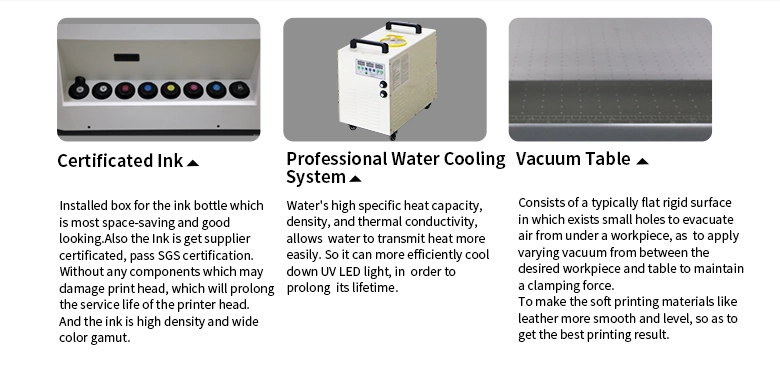

Certificated Ink
Ink is get supplier certificated, pass SGS certification. Without any components which may damage print head, which will prolong the service life of the printer head. And the ink is high density and wide color gamut.
High Precision Printer Head Base Board
Printer head base board is OEM by professional factory with high-precise process. Error is less than 0.01mm to improve print accuracy.
Stable Accessories
All accessories of the ink system are certified and stable working, without any chemical reaction with ink.
Professional RIP software
User interface is simple, easy to understand and operate. Efficient workflow, and excellent image handing, rich color management tools, professional color processing.
Printer Head Anti-Collision System
Printer Head is installed with Anti-collision system to prevent any damage from accidents caused by human error or material deformation.
| Model No. | UV1610 |
| UV Curing System | UV LED Water Cooling System |
| Materials to Print | metal, plastic, glass, wood, ceramics, acrylic, leather, pen, etc. |
| Max. Print Format | 62.99"*39.37" (160*100cm) |
| Max. Print Gap | 10cm(3.94'') |
| Power Consumption | 3800W |
| Power Requirement | 50/60HZ 220V(±10%)<20A |
| Environment | 20 ~ 28C HR40-60% |
| Print Head | Toshiba CE4 (Nozzles 318X2), printer heads can be 5~10pcs. |
| RIP Software | SAi PhotoPrint DX Plus |
| Software Language | English/Chinese/German/Italian/Japanese/Korean/French/Finnish/Dutch/Portuguese/Spanish |
| Operation System | Windows 7 /Windows 8 /Windows10 |
| Ink Type | UV ink |

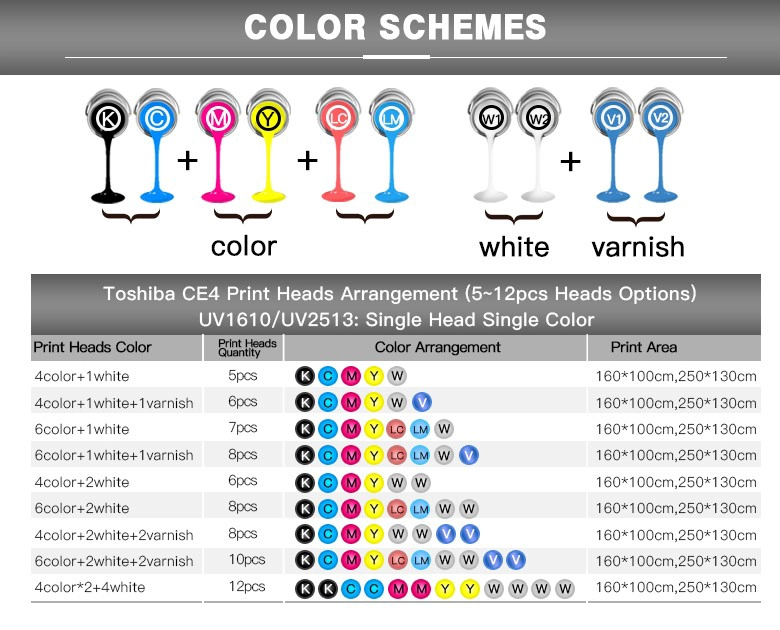

| Ink Color | KCMYWW /KCMYLcLmWW /KCMYLcLmWWVV |
| Ink Supply System | CISS Built Inside With Ink Bottle |
| Interface | USB3.0 |
| Machine Gross Weight | 1200kg |
| Packing Dimension | 377*196*162cm |
| Packing | Strong Wooden Package with Full Foam |
