Home > Products > UV Flatbed Printer > 6090 UV Printer > Digital UV Flatbed Printer N60.....
Digital UV Flatbed Printer N6090Digital UV Flatbed Printer N6090Digital UV Flatbed Printer N6090

Digital UV Flatbed Printer N6090

  • Model No.: N6090
  • Machine Type: Automatic, Flatbed, UV LED Lamp, digital printer
  • Max. Print Format: 23.62"*35.43" (60*90cm)
  • Max. Print Gap: 13cm
  • RIP Software: PhotoPrint RIP
  • Software Language: English/ Chinese

Upgradeof Digital N6090 Flatbed Printer Machine
The digital UV flatbed printer is the latest UV machine of Microtec company. This model is designed for industrial bulk production with high printing speed,which can print on almost any material directly. With UV light irradiating during printing procedure, images on object surface are dry fast and scratch resistance.



*The UV light source can be adjusted
*Auto height measurement
*Power clean
*Can print on any material directly
*Ideal for industrial bulk production with high printing speed
*Finished products is Water proof, UV proof, and Scratch proof
*Finished product is suitable for outdoor use
*Max printing Size: 60*90cm
*With Carry handle
*The printing machine can print white color
*Epson DX5  (Nozzles 180x8) Printer head
*1 Year Guarantee and lifetime maintain

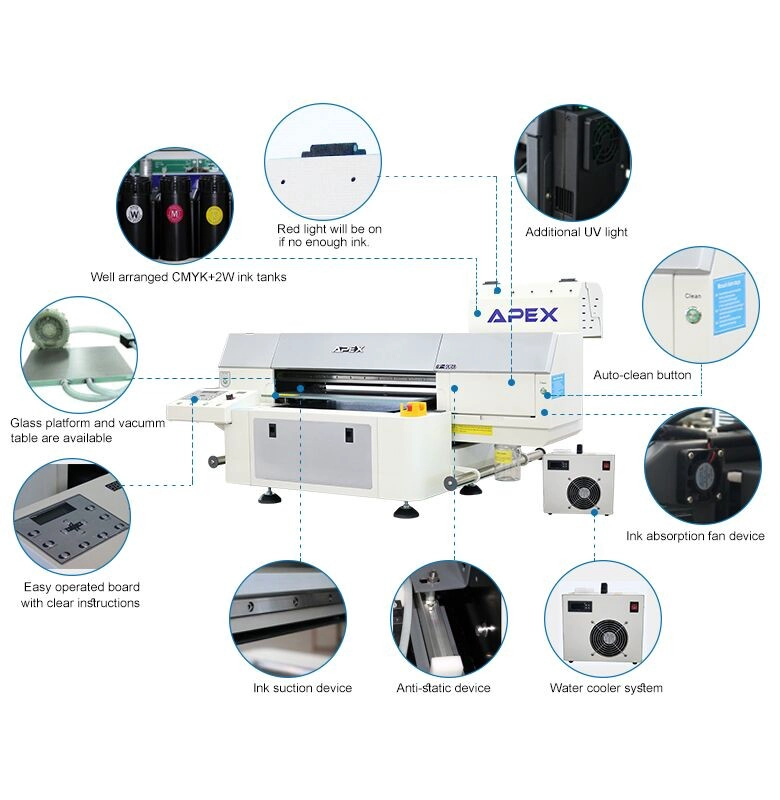

UV Flatbed Printer Auto Height Sensor Function:Smartly Detect the Distance between Media and Printer Head

Power Clean: Cleaning Can be Made Without Connection to PC.

Water Cooling System: Water's high specific heat capacity, density, and thermal conductivity,  allows  water to transmit heat more easily. So it can more efficiently cool down UV LED light, in  order to prolong  its lifetime.

UV Light Brightness Adjust: Adjust UV light Brightness to Fit Curing Needs.

Special Fixtures, Bulk Production: To increase the output of production for special product, Apex  supplys specific fixture which makes it possible to implement a batch printing. Contact Now, to custom  your unique fixtures for special promotion  items.

Vacuum table: 
 1.Consists of a typically flat rigid surface in which exists small holes to evacuate air from under a workpiece, as  to apply varying vacuum from between the desired workpiece and table to maintain a clamping force.
 2.To make the soft printing materials like leather more smooth and level, so as to get the best printing result.



 Model No.  N6090
 Max. Print Size  23.62"*35.43(60*90cm)
 Nozzle No.  180*8
 Printer Head  Single Printer Head Epson DX5
 Curing System  UV LED Water Cooling System
 Max. Height  13cm
 Power  110V/220V, 50/60HZ
 Software  SAi PhotoPrint DX
 Max. Media Weight  25kg
 Interface  USB 3.0
 Ink Colors  KCMYWWWW/KCMYWWVV
 Net Weight  190kg
 Packing Size  1790*1600*880cm
