Digital UV Flatbed Printer TX4060
- Model number: TX4060
- Machine type: automatic, flatbed, UV LED lamp, digital printer
- Max. Printing format: (40 * 60 cm)
- Max. Printing gap: 13 cm
- RIP Software: SAi PhotoPrint DX
- Software language: English / Chinese

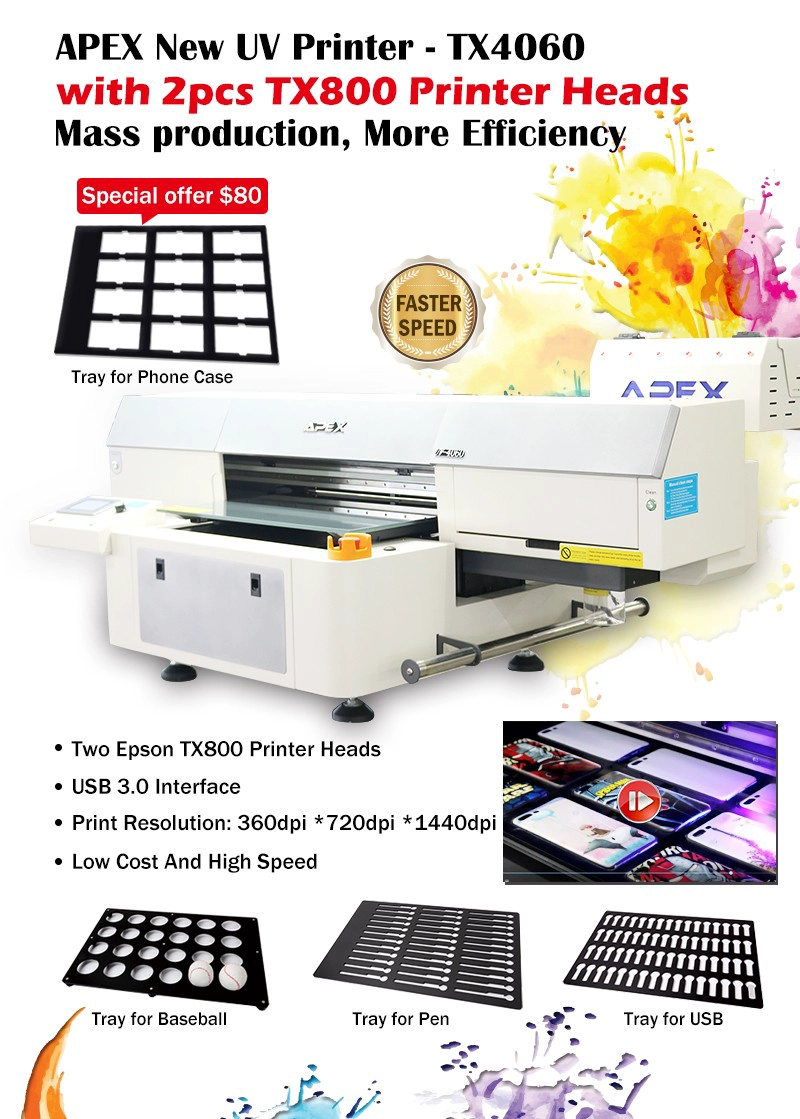

New digital TX4060 digital flatbed printer
The digital UV flatbed printer is Microtec's latest UV machine. This model is designed for industrial mass production with high printing speed, which can print directly on almost all materials. With the UV light that radiates during the printing process, the images on the surface of the object are dry and scratch resistant.
The digital UV flatbed printer is Microtec's latest UV machine. This model is designed for industrial mass production with high printing speed, which can print directly on almost all materials. With the UV light that radiates during the printing process, the images on the surface of the object are dry and scratch resistant.
* The UV light source can be adjusted
* Automatic height measurement
* Clean up
* Can print directly on any material
* Ideal for industrial mass production with high printing speed
* The finished products are water-proof, UV-proof and scratch-resistant
* The finished product is suitable for outdoor use
* Max. Print size: 40 * 60 cm
* With carrying handle
* The printer can print blank
* Two Epson TX800 printheads
* 1 year warranty (printhead not included) and lifetime maintenance
* Automatic height measurement
* Clean up
* Can print directly on any material
* Ideal for industrial mass production with high printing speed
* The finished products are water-proof, UV-proof and scratch-resistant
* The finished product is suitable for outdoor use
* Max. Print size: 40 * 60 cm
* With carrying handle
* The printer can print blank
* Two Epson TX800 printheads
* 1 year warranty (printhead not included) and lifetime maintenance

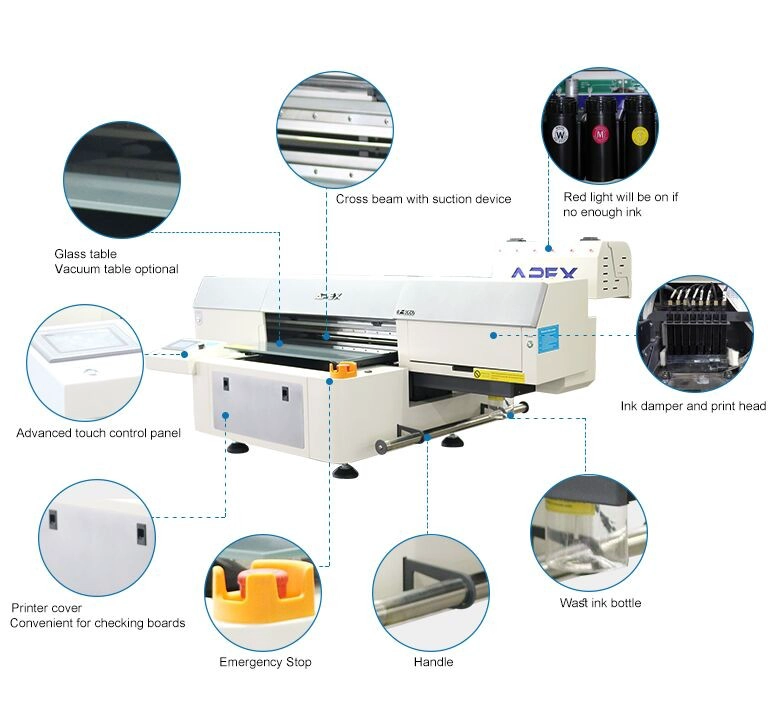

Automatic height sensor function of UV flatbed printer: Intelligently detects the distance between the media and the printer head
Power Clean: Cleaning can be done without connection to the PC.
Water cooling system: The high specific thermal capacity of water, density and thermal conductivity allow water to transmit heat more easily. In this way it is possible to cool the UV LED light more efficiently, in order to prolong its life.
Adjust the brightness of the UV light: Adjusts the brightness of the UV light to adapt it to the polymerization needs.
Special equipment, series production: To increase production output for a special product, Apex provides a specific device that allows you to implement a batch print. Contact us now to customize your unique devices for special promotional items.
Water cooling system: The high specific thermal capacity of water, density and thermal conductivity allow water to transmit heat more easily. In this way it is possible to cool the UV LED light more efficiently, in order to prolong its life.
Adjust the brightness of the UV light: Adjusts the brightness of the UV light to adapt it to the polymerization needs.
Special equipment, series production: To increase production output for a special product, Apex provides a specific device that allows you to implement a batch print. Contact us now to customize your unique devices for special promotional items.
Empty table:
1. Consists of a typically flat rigid surface in which small holes exist to evacuate the air from under a piece, in order to apply a variable vacuum between the work piece and the desired table to maintain a clamping force.
2. To make the printing materials soft as the skin smoother and leveled, so as to get the best printing result.
1. Consists of a typically flat rigid surface in which small holes exist to evacuate the air from under a piece, in order to apply a variable vacuum between the work piece and the desired table to maintain a clamping force.
2. To make the printing materials soft as the skin smoother and leveled, so as to get the best printing result.
| Model number: | TX4060 |
| Max. Print size | 15.75 "* 23.62" (40 * 60cm) |
| Nozzle Nozzle | 180 * 6 (2 pcs printer heads) |
| Printing head | Two Epson TX800 printheads |
| Polymerization system | LED UV water cooling system |
| Max. Height | 13 centimeters |
| Power | 110V / 220V, 50 / 60HZ |
| Software | SAi PhotoPrint DX or DX Plus |
| Max. Weight of the support | 25kg |
| Interface | USB 3.0 |
| Ink colors | KCCMMY + WWWWWW / KCCMMY + WWWWVV |
| Net weight | 178kgs |
| Machine size | 1400 * 1330 * 550 mm |
| Packing size | 179 * 116 * 88 centimeters |
