DTG6090 textile printerDTG6090 textile printerDTG6090 textile printerDTG6090 textile printer

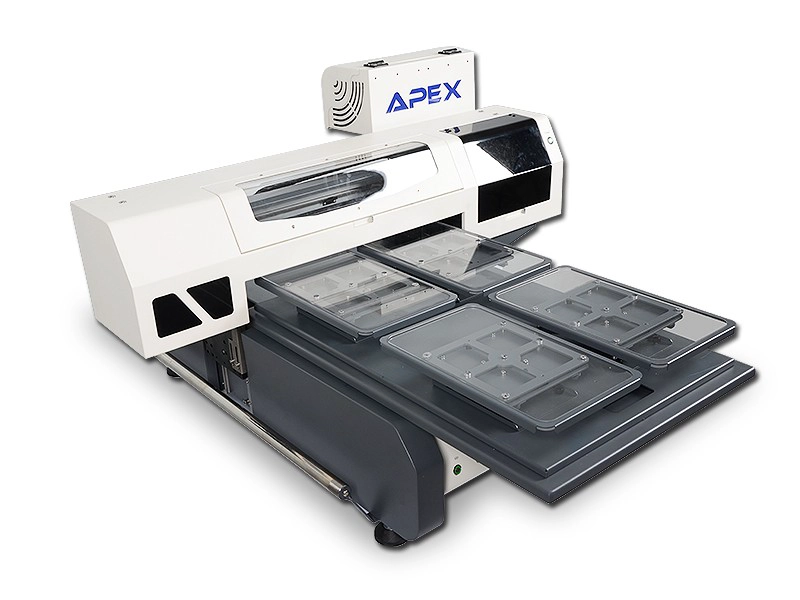

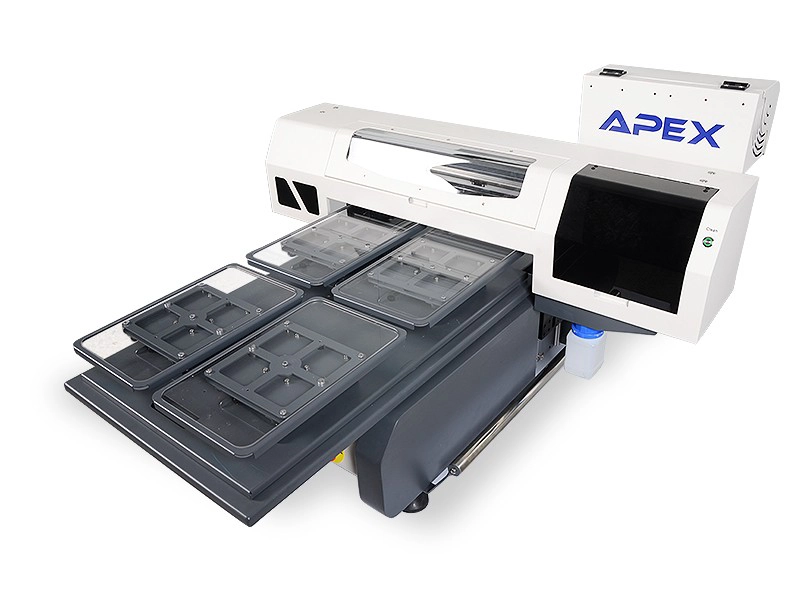

DTG6090 textile printer

  • Model No.: DTG6090
  • Max. Print format: 23.6 "* 35.4" (60 * 90 cm)
  • Max. Print Gap: 5cm
  • RIP software: SAi PhotoPrint DX or DX Plus
  • Ink colors: CMYKWWW
  • Height adjustment: automatic with sensor

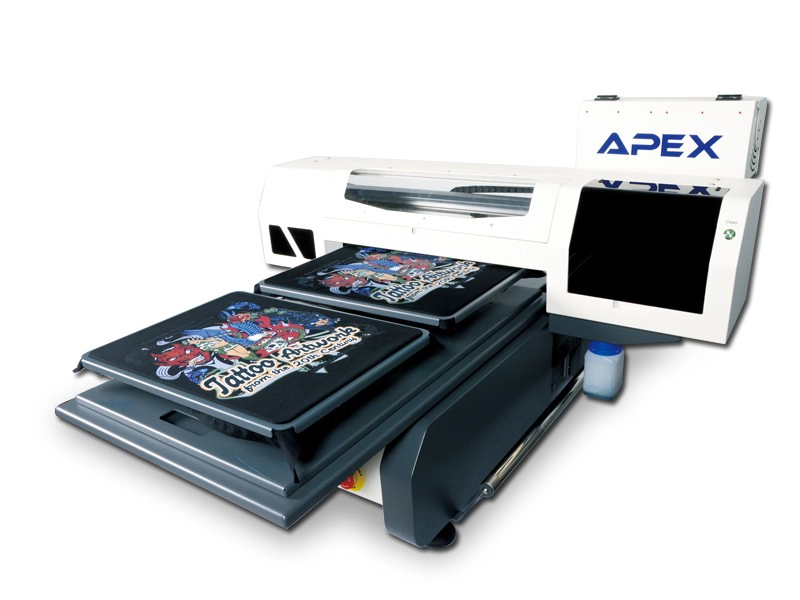

The APEX-jet DTG6090 printer is made of high quality materials that have passed the strict QC inspections. DTG6090 is a long lasting double-sheet or multi-platform garment printer, you can choose 4 plates for small T-shirts or 2 large plates for T-shirts, or 2 plates for small T-shirts with 1 plate for large t-shirts . This printer is equipped with the Epson DX5 print head, can print at high resolution, even print human faces.
The maximum platform size of this DTG T-shirt printer is 600 * 900 mm. It can print CMYK and white color at the same time, it is also possible to choose Uni-direction or Bi-direction when printing the shirts.
With high quality APEX textile inks, it produces the perfect print quality on various types of garments, in particular 100% cotton t-shirts and cotton blend t-shirts, such as 80% mixed cotton. Furthermore, using the APEX pre-treatment solution, you can also use DTG6090 to print on polyester, cotton, dacron, modal, etc.
In combination with the PhotoPrint Apex-jet software, this printer is an easy-to-use and easy to maintain digital clothing printer.

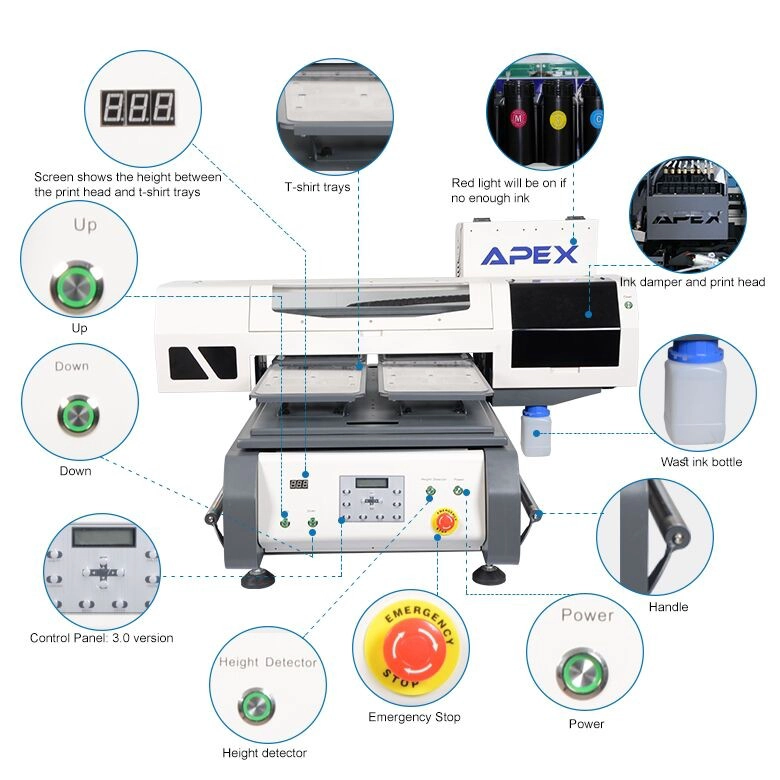

* High speed, easy operation
* Automatic plate height adjustment
* Verstaile 4 - 2 -1 plate system

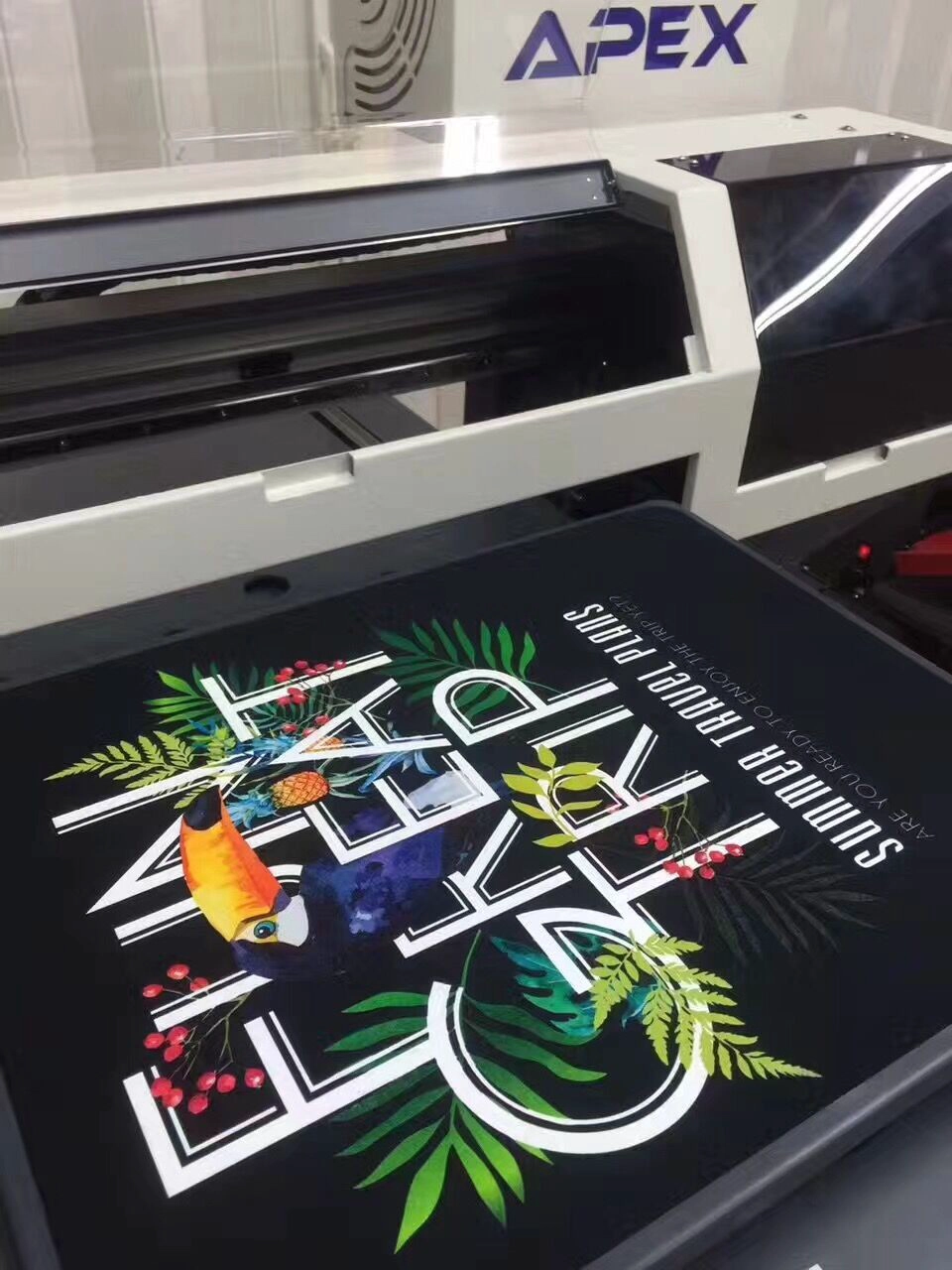

* White ink printing on dark shirts
* Industrial performance
* Real color printing
* One year warranty

Cloth plate:

Multiple tissue plates are available
4 small table: 40.9 cm * 23.6 cm (16 "* 9.3")
2 large top: 51 cm * 37.5 cm (20 "* 14.8")
Or 2 small plates + 1 large plate


CMYKW textile ink:

Vivid color, high color concentration, sharp point

Excellent adaptability, excellent print quality on the machine



* White ink options - fullbackground, sub color or spot color

* Allows you to add your ICC color profiles to the RIP

The repeat function allows you to copy designs for multiple product prints

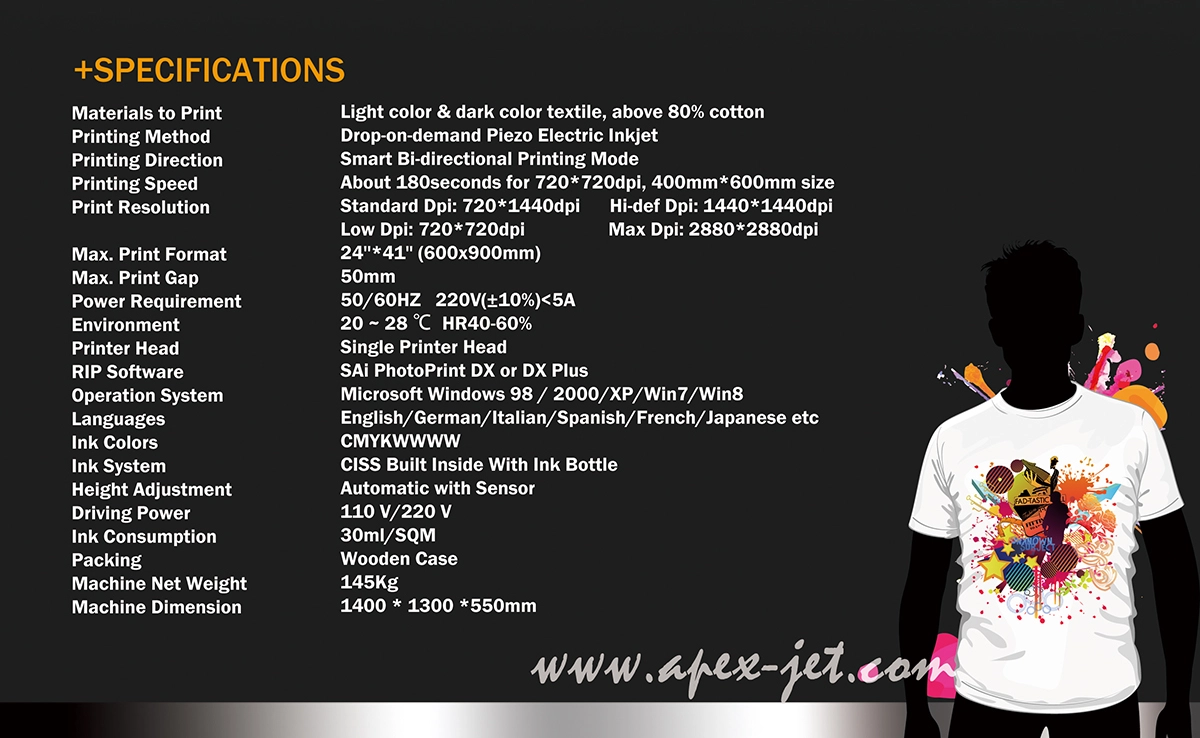

 Model number:  DTG6090
 Materials to be printed  Light color and & dark colored fabric, over 80% cotton, etc.
 Max. Print format  23.62 "* 35.43" (60 * 90cm)
 Max. Print Gap  5cm (1.97 '')
 Energy consumption  380W
 Power requirements  50 / 60HZ 220V (± 10%) & lt; 20A
 Environment  20 ~ 28C HR40-60%
 Printing head  Epson DX5 (180 * 8 nozzles)
 RIP software  SAi PhotoPrint DX
 Software language  English / Chinese / German / Italian / Japanese / Korean / French / Finnish / Dutch / Portuguese / Spanish
 Operating system  Windows 7 / Windows 8 / Windows10
 Type of ink  Textile ink
 Ink color  KCMY + WWWW
 Ink supply system  CISS Built Inside With Ink Bottle
 Interface  USB3.0
 Machine gross weight  287kg
 Packing size  156 * 146 * 89 centimeters
 Packaging  Strong wooden package with full foam
