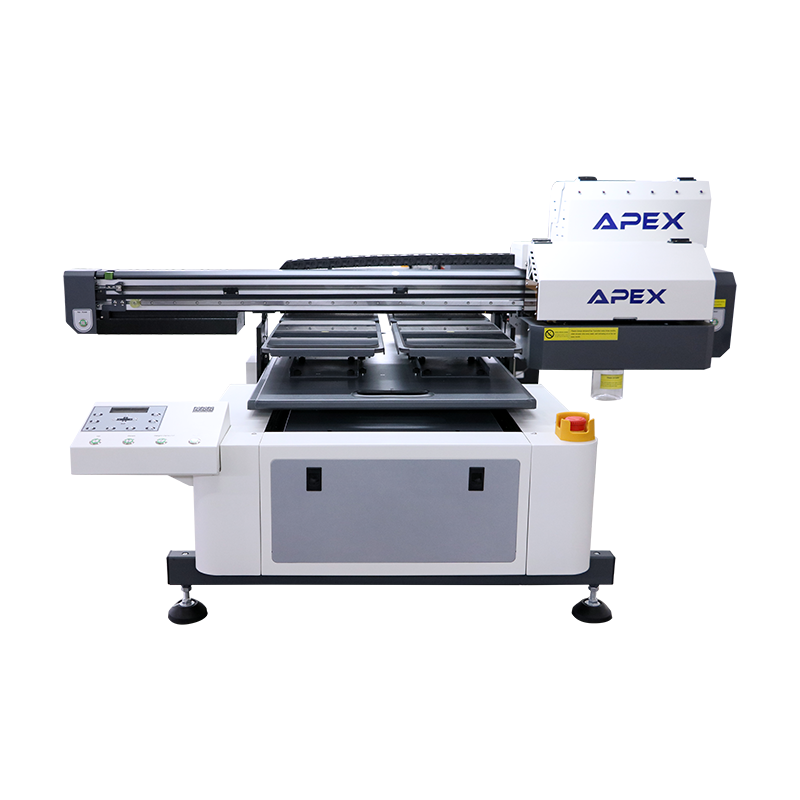

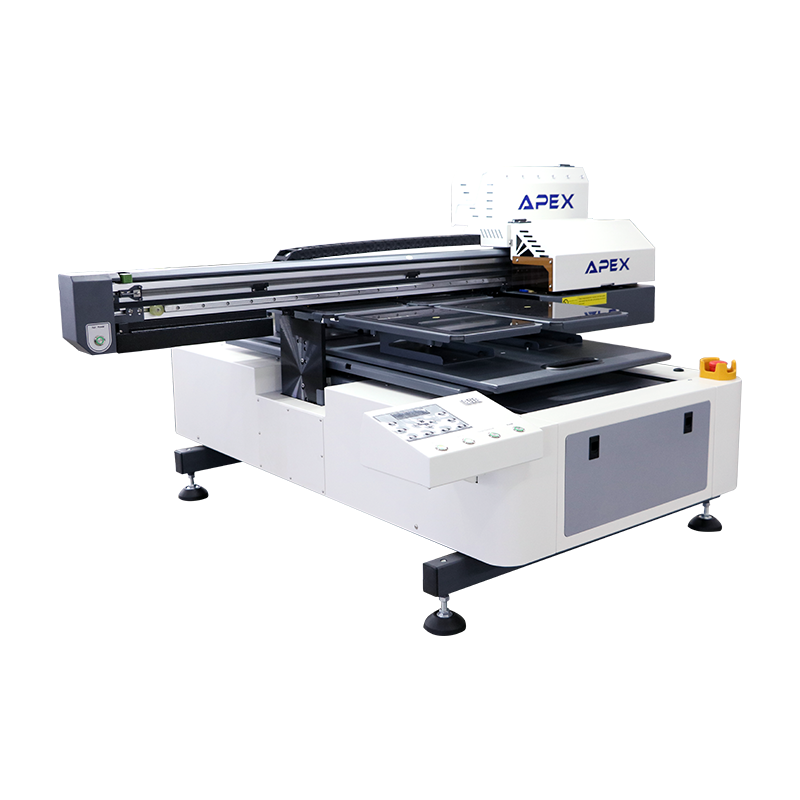

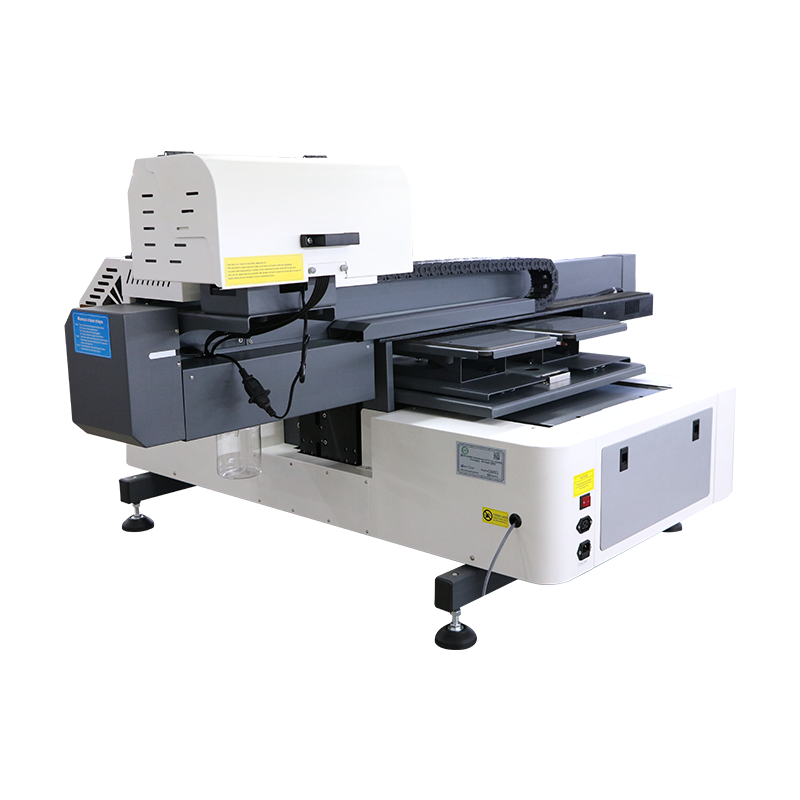

DTG Printer-NDTG6090B

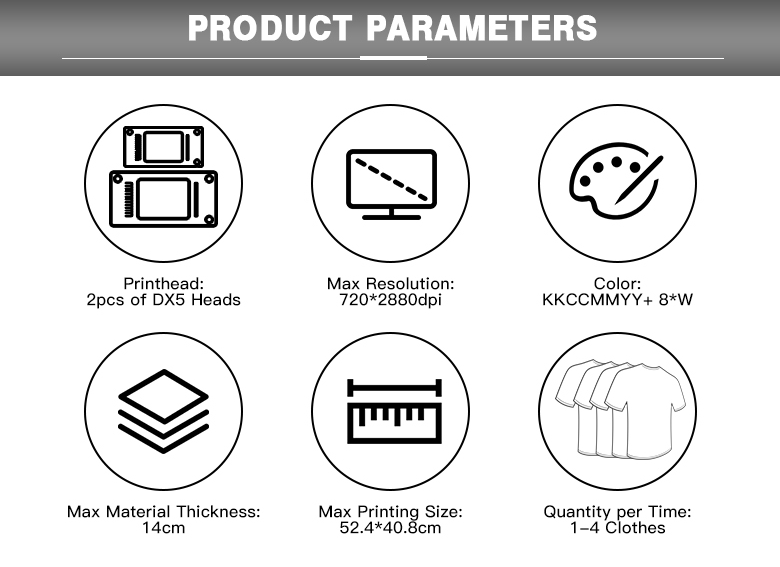

- Model No.: NDTG6090B
- Printer Head:2pcs Epson DX5 Print Head
- Machine Type:Direct To Garment FlatBed Printer
- Print Resolution:Max Dpi: 720*2880dpi 16pass
- Max. Print Gap:4cm
- Print Quality:True Photographic Quality
- Interface:USB3.0
- Ink Colors:KKCCMMYY+ WWWWWWWW
- Machine Size:141*176*85cm
NDTG6090B printer is made from high-end materials that have passed inspection. DTG6090B is a durable double-platen ormultiple- platen garment printer, its maximum platform size is 600*900mm. It produces the highest quality images on many types of garments, especially 100% cotton andhigh-cotton blend t-shirts. Combined with Apex-jet PhotoPrint software, thisprinter isan easy-to-use and easy-to-maintain industrial garment printer.

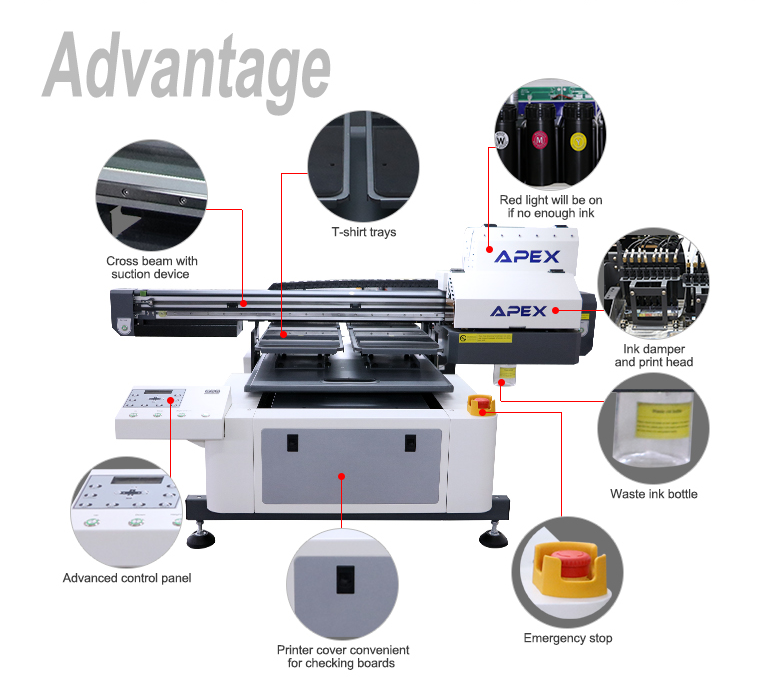

· Auto height measurement
· Power clean
· Print 1-4 clothes at one time
· 2pcs Epson DX5 (Nozzles 180x8) Printer head
Cloths Tray Option:
2*524mm*408.9mm Cloths Tray
(Or 4*408.9mm*236.5mm ClothsTray)
(Or 2*408.9mm*236.5mm ClothsTray+1*524mm*408.9mm Tray)
Price Includes:
NDTG6090B Printer,SAi PhotoPrint DX software, Inner six angle wrench, Small screwdriver, Ink absorption mat, USB cable, Syringes, Damper, User manual, Wiper, Wiper Blade, Mainboard fuse, Replace screws and nuts, Cloths trays
Printing Speed:
A4,CMYK,Bi-direction,1'39"A4,CMYK+W,Bi-direction,2'19"

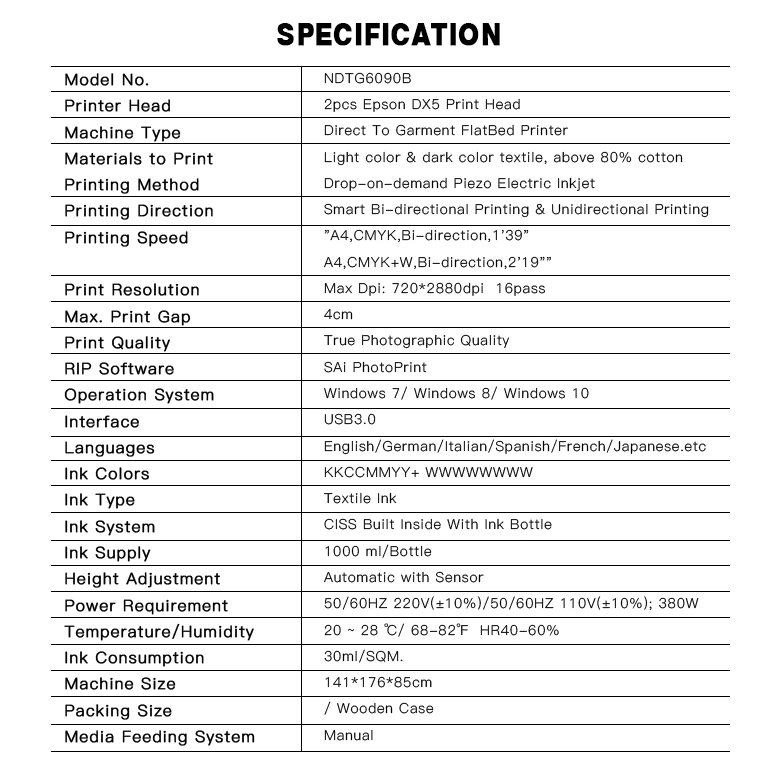

| Model No. | NDTG6090B |
| Materials to Print | Light color & dark color textile, above 80% cotton, etc |
| Max. Print Format | 23.62"*35.43"(60*90cm) |
| Max. Print Gap | 4cm |
| Power Requirement | 50/60HZ 220V(±10%)/50/60HZ 110V(±10%); 380W |
| Power Requirement | 50/60HZ 220V(±10%)<20A |
| Temperature/Humidity | 20 ~ 28 ℃/ 68-82℉ HR40-60% |
| Print Head | 2pcs Epson DX5 Print Head |
| Print Resolution | Max Dpi: 720*2880dpi 16pass |
| RIP Software | SAi PhotoPrint |
| Print Quality | True Photographic Quality |
| Languages | English/German/Italian/Spanish/French/Japanese.etc |
| Operation System | Windows 7 /Windows 8 /Windows10 |
| Ink Type | Textile ink |
| Ink Color | KKCCMMYY+ WWWWWWWW |
| Ink System | CISS Built Inside With Ink Bottle |
| Ink Consumption | 30ml/SQM. |
| Interface | USB3.0 |
| Working Environment | 20-28 degrees |
| Machine Size | 141*176*85cm |
| Packing Size | Wooden Case |
| Media Feeding System | Manual |
Tag:DTG Printer
