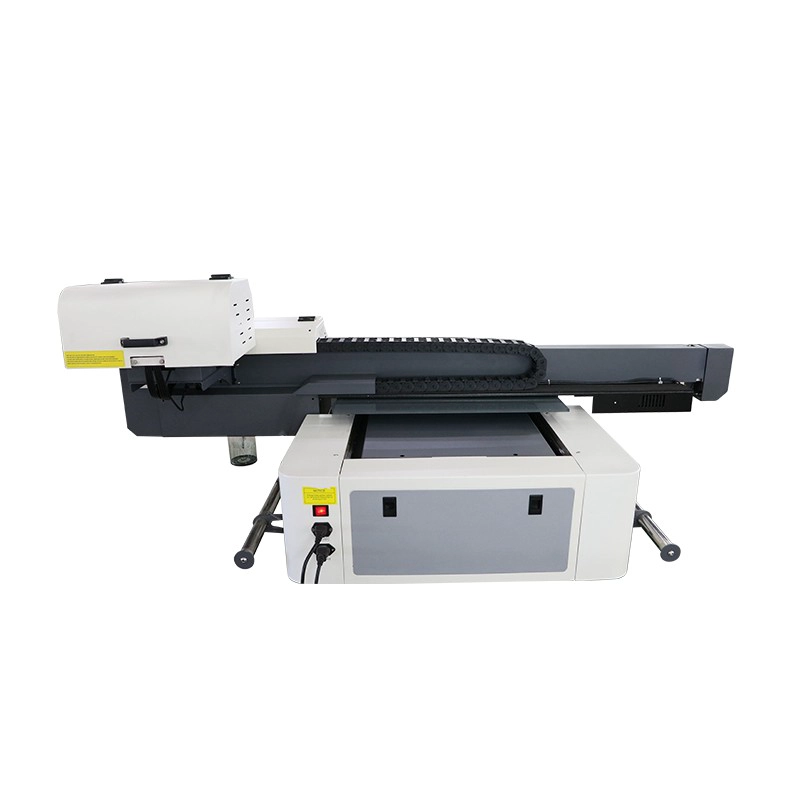

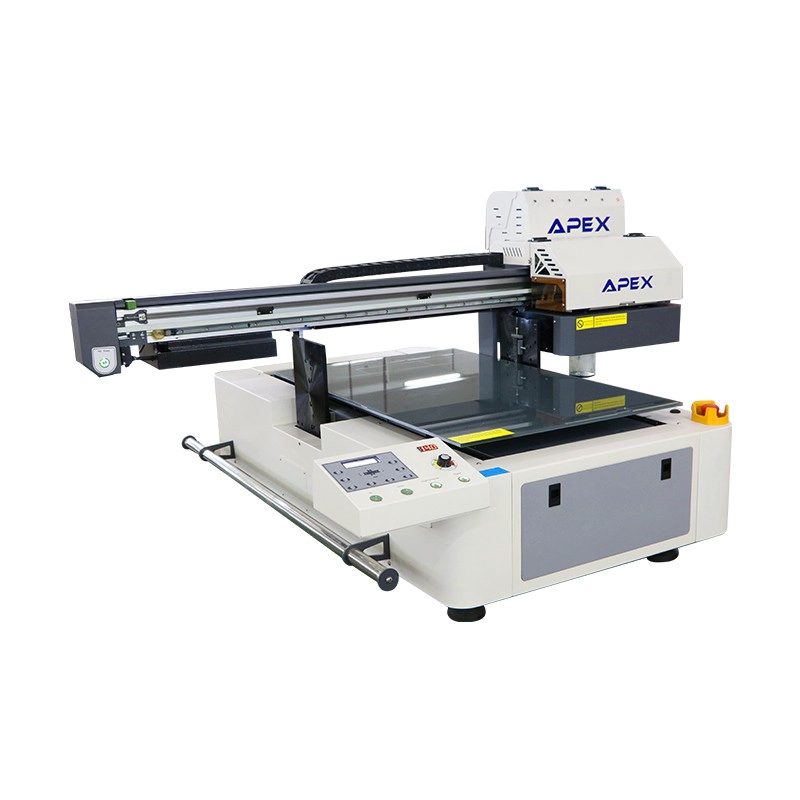

Digital UV Flatbed Printer UV6090B (2pcs DX5 Heads)-Old Version

  • Model No.: UV6090B
  • Printer Head:2pcs Epson DX5 Print Head
  • Machine Type: Automatic, Flatbed,
  • UV LED Lamp, Digital Printer
  • Max. Print Format: 23.62"*35.43"(60*90cm)
  • Max. Print Gap: 14cm
  • RIP Software: PhotoPrint RIP
  • Software Language: English/ Chinese

Online videodemo of UV6090B digital printing machine price phone case printing machine uv printer:

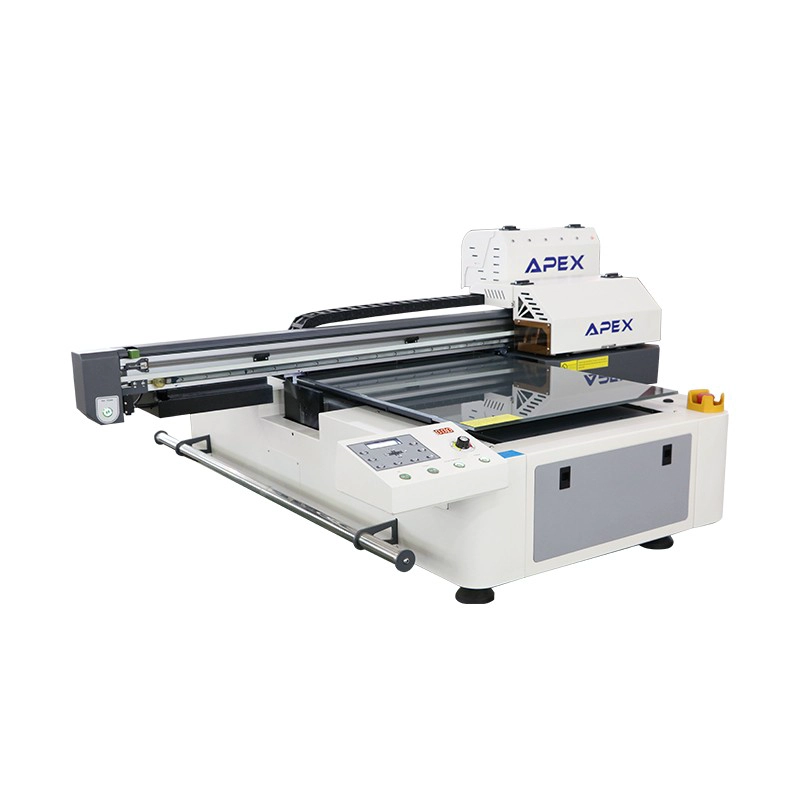

UV6090B digital printer price phone case printer uv printer is an upgraded multifunctional led uv flatbed printer developed by APEX company based on the previous 6090.




The uv printer has industrial configuration,such as thickened aluminum profile,water circulation cooling system,automatic detection uv curing system...maximum 8 colors or 16 colors. 720-2880 dpi print resolution. Can print on any flat material,cylindrical objects, balls and bottles. The output has a good 3D texture printing effect.

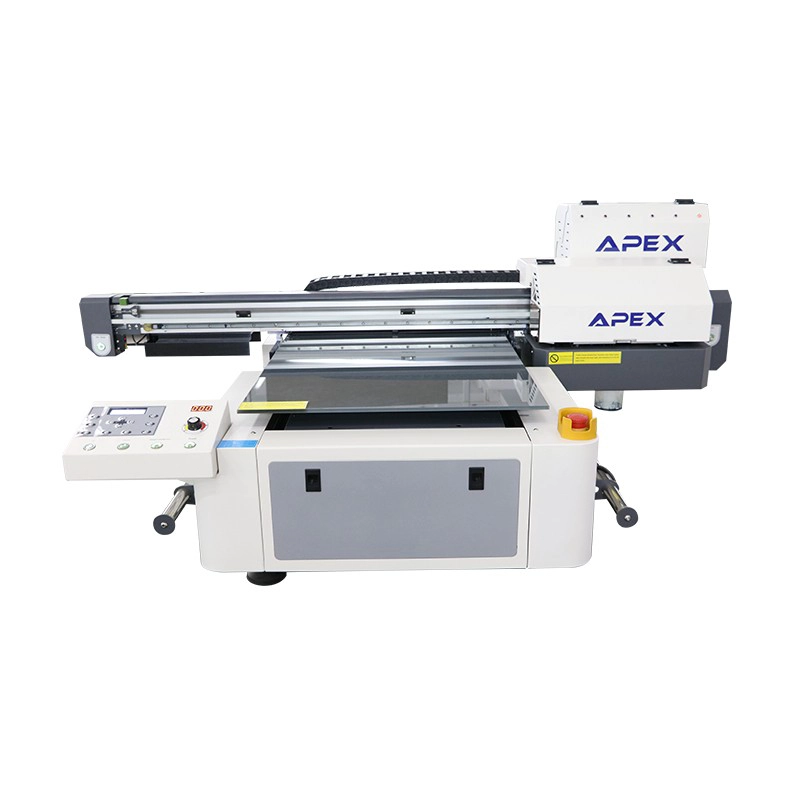

UV6090B digital flatbed uv led printer made by APEX.


It has double print head, power clean, automatic height detector,  water cooling system,  uv led light adjustable,  etc functions.

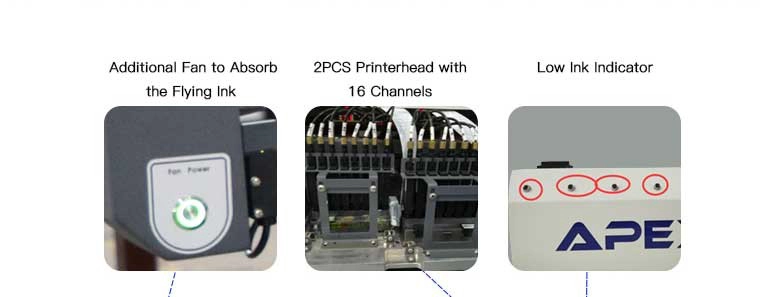

Equipped with double DX5 print heads,  color mode KKCCMMYY+ 8*W or KKCCMMYY*2,  you can get faster printing speed and enhance productivity.




UV6090B uv printer is widely used. It can print all kinds of flat objects,  such as metal,  plastic, glass, wood, ceramic, acrylic, leather. With custom tray it can also print three-dimensional surface of objects,  such as golf ball,  baseball,  mugs, sports bottles.

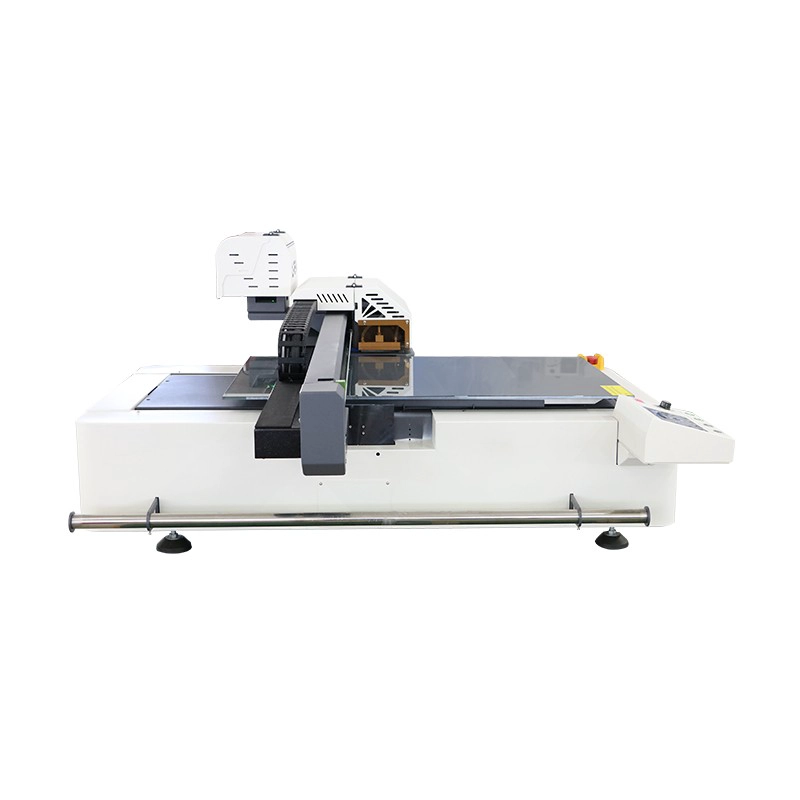

UV6090B digital printing machine price phone case printing machine uv printer has space saving design to let customer can lay machine on a small room. Outlook of the flatbed printer with dust free design. The new design reduces the environmental impact on equipment.


Super table size of 6090B digital printing machine price phone case printing machine uv printer, cooled head ensure you can print on any media with max.60*90cm printing area.




6090B digital printing machine price phone case printing machine uv printer water cooled head support max,material thickness 14cm,expand more printing area for customer. 

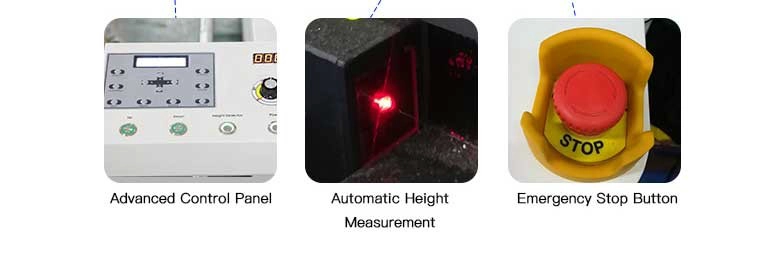

Easy operation panel can control the flatbed for Backward, Foward, Up, Down, Pause / Stop, Online / Offline and ink changing , to let you operate the machine more convinence.





6090B digital printing machine price phone case printing machine uv printer has bend surface, Cylinder objects and balls also can be printed easily.




High quality led uv curing system can get to the working powerduring 100W-200W immediately without waiting, also the led light cost less power and harmless for human health. Combine with the high effective water circulation cooling system to ensure the stable printing.


  Name  6090B Digital Printer Price Phone Case Printer UV Printer
 Model No.  UV6090B
  Printer Head
 2pcs Epson DX5 Print Head
 Machine Type  Automatic,Flatbed,UV LED Lamp,Digital Printer
 Max.Print Format  24"*41"(60*90cm)
 Max.Print Height  140mm for glass platform,110mm for vacuum platform
 Materials to Print  Metal,Plastic,glass,wood,Ceramics,Acrylic,Leather,etc.
 UV Curing System   LED UV Water Cooling
 Printing Speed  60*90cm,4pass+Bi direction+color+heavy,6'26"
 60*90cm,8pass+Bi direction+color+heavy,12'29"
 60*90cm,16pass+Bi direction+color+heavy,24'42"
 Print Resolution  Max Dpi:720*2880dpi 16pass
 Power Requirement  50/60HZ"220V(±10%)/110V(±10%)
 Power Consumption  380W
 Print Quality  True Photographic Quality
 Working Environment  20-28℃  HR40-60&
 RIP Software  SAi Photographic Quality
 Operation System  Windows 7/Windows 8/Windows 10-64bit
 Interface  USB3.0
 Language  English
 Ink Colors  KKCCMMYY 8*W/KKCCMMYY KKCCMMYY
 Ink Type  UV ink
 Ink System  CISS Bult Inside With Ink Bottle
 Ink Supply  1000ml/Bottle
 Height Adjustment  Automatic with Sensor
 Machine Net Weight  223kg
 Machine Dimension  141*176*76cm
 Wooden Package Size  180*160*89cm
 Printing Method  Drop-on-demand Piezo Electric Inkjet
 Printing Direction  Unidirectional Printing or Bi-directional Printing Mode


Customize 6090B digital printing machine price phone case printing machine uv printer water cooled head can get a high density brilliant printing results both on dark and light media with White ink and Color ink printing.


Microtec/Apex's mainobjectiveis to support all our customers, who can manage their APEX UV&DTG printers activities without interruption.

So Apex offers FREE SPARE PARTS with a quantitative order and the following guarantee:
* Free lifetime technical support online for all apex printers.
* One year warranty for the whole machine excluding printer heads
* Three months warranty on the consumable parts like dampers, cap tops, etc.
* Five professional English engineer available to provide onsite service if customer needed(customers pay onsite service charge, bear tickets and accommodation)

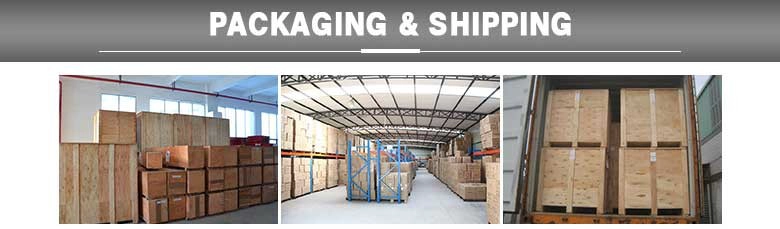

Before shipment,  the machine is cleaned fully,  daubed by anti-rust oil carefully,  covered by plastic bag,  wrapped by the strethc film,  and at last firmed into the wooden case.

Packaging: packed with foam perfectly,  wrapped by stretch film,  and put into strong carton box.






Microtec/Apex's main objective is to support all our customers, who can manage their APEX UV printers activities without interruption. So Apex offers FREE SPARE PARTS with a quantitative order and the following guarantee:
* Free lifetime technical support online for all apex printers.
* One year warranty for the whole machine excluding printer heads
* Three months warranty on the consumable parts like dampers, cap tops, etc.
* Five professional English engineer available to provide onsite service if customer needed(customers pay onsite service charge, bear tickets and accommodation)
