Digital 3D UV LED Flatbed UV6090P Phone Case Printer-Old VersionDigital 3D UV LED Flatbed UV6090P Phone Case Printer-Old VersionDigital 3D UV LED Flatbed UV6090P Phone Case Printer-Old VersionDigital 3D UV LED Flatbed UV6090P Phone Case Printer-Old Version

Digital 3D UV LED Flatbed UV6090P Phone Case Printer-Old Version

  • Model No.: UV6090P
  • Machine Type: Automatic, Flatbed, UV LED Lamp, Digital Printer
  • Max. Print Format: 23.62"*35.43"(60*90cm)
  • Max. Print Gap: 14cm
  • RIP Software: PhotoPrint RIP
  • Software Language: English/ Chinese"

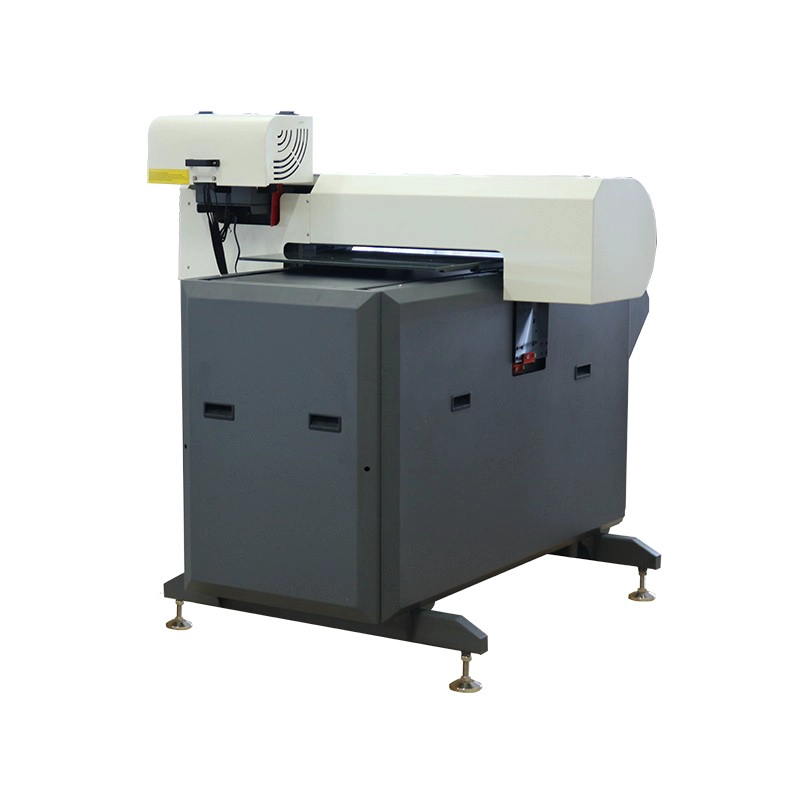

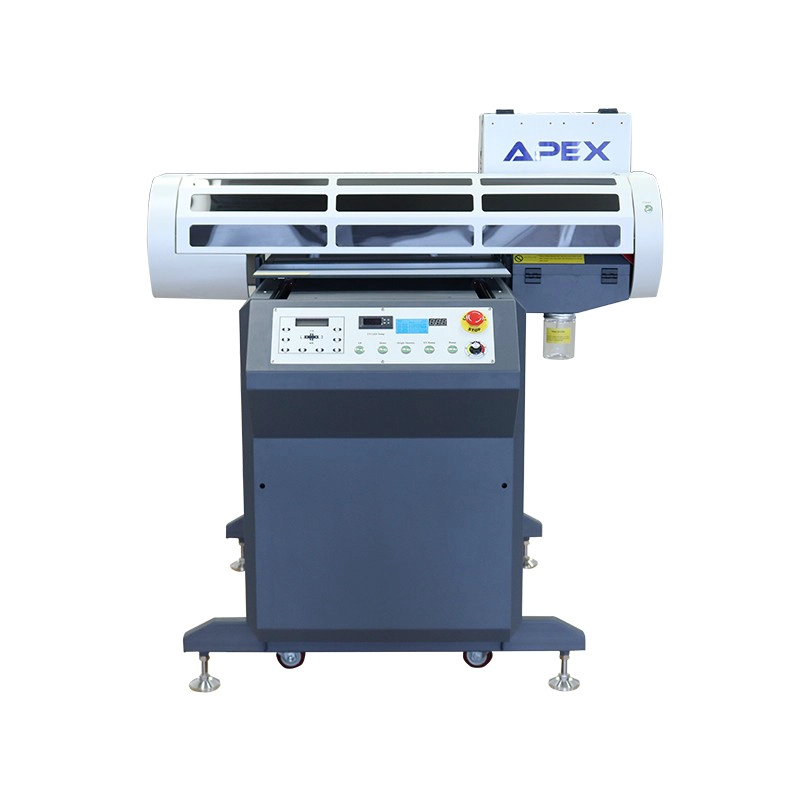

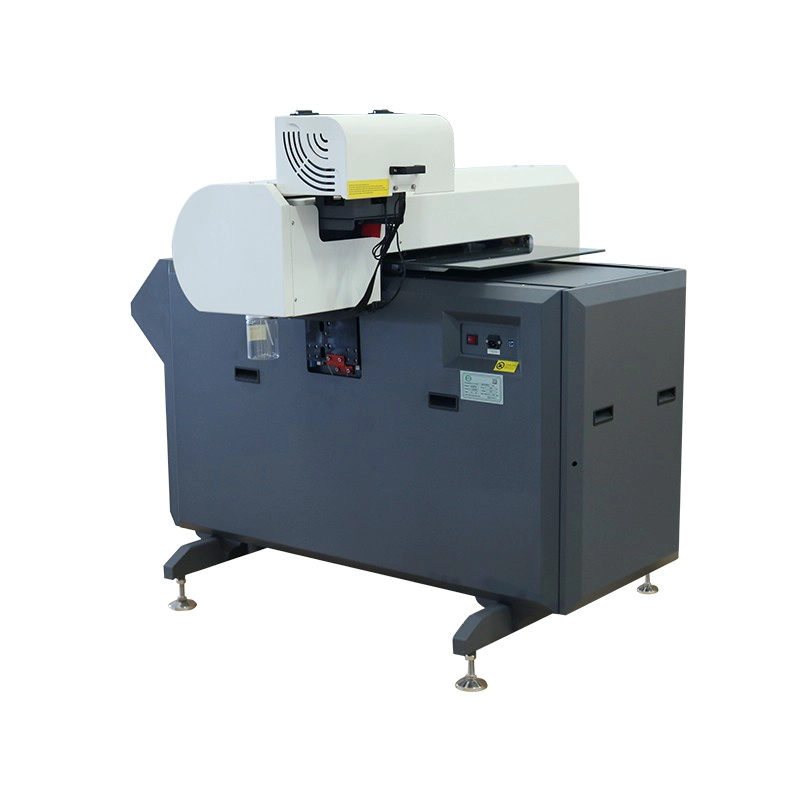

APEX UV6090P digital UV Flatbed Printer is the super classic UV machine with outstanding design. It's our classical UV series with power clean, automatic height detector, water cooling system, uv LED light adjustable, etc functions.What's more, this unit with working table and wheels so that customers can move easily.

This model use Epson DX5 print head which can print on any flat material & round objects, like bottles, mugs, pens, golf balls, acrylic, wood, metal, crystal, plastic, phone cases etc. With Epson DX5 printer heads, the printing quality is very perfect in details, even printing human face.

If you need machine at good price and want to print round shape like bottles, UV Series: UV6090P is highly recommended, whether you need a bottle or mug uv printer, phone case uv printer, or acrylic uv printer, etc.



*The UV light source can be adjusted
*Auto height measurement
*Power clean
*Direct to any substrate
*Ideal for industrial bulk production with high printing speed
*Max printing Size: 60*90cm
*With Working Table


 Model No.  UV6090P
 UV Curing System  UV LED Water Cooling System
 Materials to Print  metal, plastic, glass, wood, ceramics, acrylic, leather, pen,  bottle & mugs,  etc
 Max. Print Format  23.62"*35.43"(60*90cm)
 Max. Print Gap  14cm(5.51'')
 Power Consumption  380W
 Power Requirement  50/60HZ   220V(±10%)<20A
 Environment  20 ~ 28C  HR40-60%
 Print Head  Epson DX5  (Nozzles 180*8)
 RIP Software  SAi PhotoPrint DX
 Software Language  English/Chinese/German/Italian/Japanese/Korean/French/Finnish/Dutch/Portuguese/Spanish
 Operation System  Smart Bi-directional Printing Mode
 Max Media Weight  25kg
 Operating System  Windows 7 /Windows 8 /Windows10
 Ink Type  UV ink
 Ink Color  KCMY+WWWW /KCMY+KCMY /KCMY+WWVV
 Ink Supply System  CISS Built Inside With Ink Bottle
 Interface  USB3.0
 Machine Gross Weight  460kg
 Packing Dimension  174*150*147cm
 Packing  Strong Wooden Package with Full Foam



This Apex UV4060 UV printer is ideal with good price and can directly print on any materails even round shape like bottles & mugs.




Microtec/Apex's main objective is to support all our customers, who can manage their APEX UV printers activities without interruption. So Apex offers FREE SPARE PARTS with a quantitative order and the following guarantee:
* Free lifetime technical support online for all apex printers.
* One year warranty for the whole machine excluding printer heads
* Three months warranty on the consumable parts like dampers, cap tops, etc.
* Five professional English engineer available to provide onsite service if customer needed(customers pay onsite service charge, bear tickets and accommodation)
