DX5 Print Head 40*60cm New Type Desktop UV Printer-Old VersionDX5 Print Head 40*60cm New Type Desktop UV Printer-Old VersionDX5 Print Head 40*60cm New Type Desktop UV Printer-Old Version

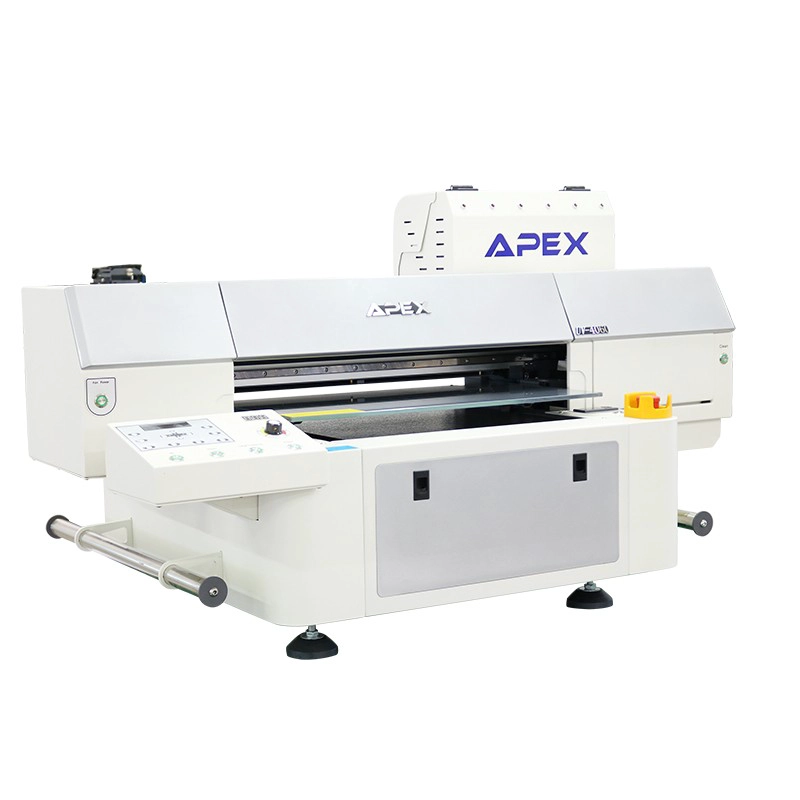

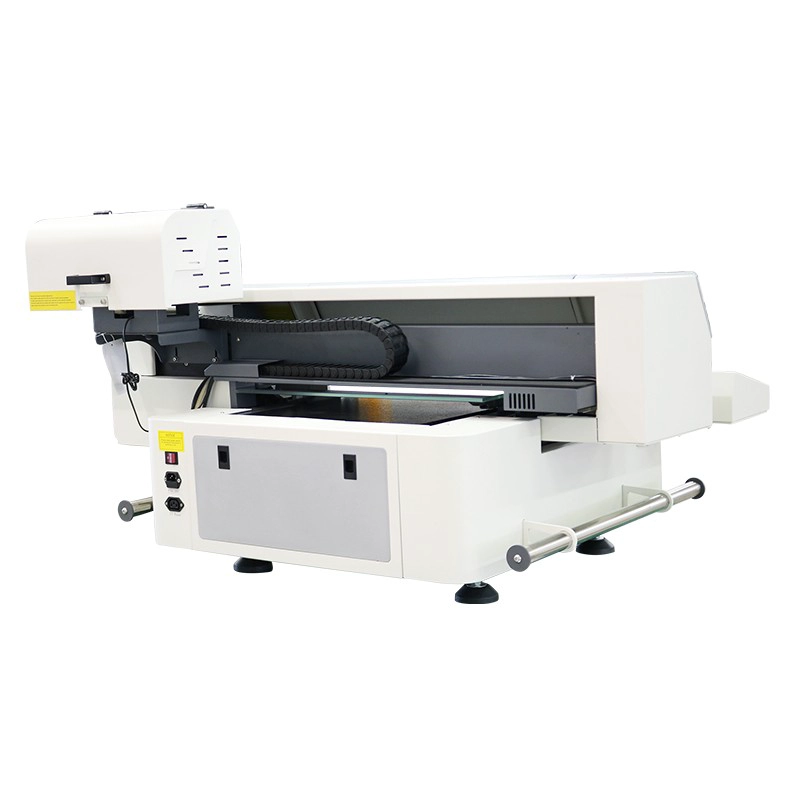

DX5 Print Head 40*60cm New Type Desktop UV Printer-Old Version

  • Model No.: N4060
  • Machine Type: Automatic, Flatbed, UV LED Lamp, Digital Printer
  • Max. Print Format: 23.62"*15.75"(60*40cm)
  • Max. Print Gap: 14cm
  • RIP Software: PhotoPrint RIP
  • Software Language: English/ Chinese


APEX N4060 digital UV Flatbed Printer is the newest UV machine with high end design.
It's reformed based on our classical UV series while adding more functions, like anti-static device, extra uv light for varnish,  printerhead heat temparature Control,extra suction device on beam to collect flying dust,etc. All these functions make APEX N4060 uv printer more high efficiency,printed materials dry fasterprinting quality more details.

This model use Epson DX5 print head which can print on any material &objects ,even for the rotary items like bottles,cups etc, you just need to add an extra cylinder tray.

If you want to print varnish, high precision effect and print mugs also, you shall choose this N Series: N4060/6090, whether you need a pen printer, phone case printer, or bottle printer, etc.





 Model No.  N4060
 UV Curing System  UV LED Water Cooling System
 Materials to Print  metal, plastic, glass, wood, ceramics, acrylic, leather, pen,  bottle & mugs,  etc
 Max. Print Format  23.62"*15.75" (60*40cm)
 Max. Print Gap  14cm(5.12'')
 Power Consumption  380W
 Power Requirement  50/60HZ   220V(±10%)<20A
 Environment  20 ~ 28C  HR40-60%
 Print Head  Epson DX5  (Nozzles 180*8)
 RIP Software  SAi PhotoPrint DX
 Software Language  English/Chinese/German/Italian/Japanese/Korean/French/Finnish/Dutch/Portuguese/Spanish
 Operation System  Windows 7 /Windows 8 /Windows10
 Ink Type  UV ink

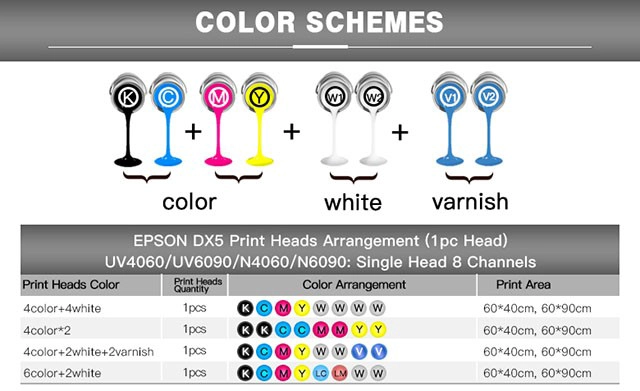

 Ink Color  KCMY+WWWW /KCMY+KCMY /KCMY+WWVV
 Ink Supply System  CISS Built Inside With Ink Bottle
 Interface  USB3.0
 Machine Gross Weight  267kg
 Packing Dimension  180*117*81cm
 Packing  Strong Wooden Package with Full Foam


*The UV light source can be adjusted
*Auto height measurement
*Power clean
*Can print on any material directly
*Ideal for industrial bulk production with high printing speed
*Finished products is Water proof, UV proof, and Scratch proof
*Finished product is suitable for outdoor use
*Max printing Size: 60*40cm
*With Carry handle
*The printing machine can print white color
*Epson DX5  (Nozzles 180x8) Printer head
*1 Year Guarantee and lifetime maintain

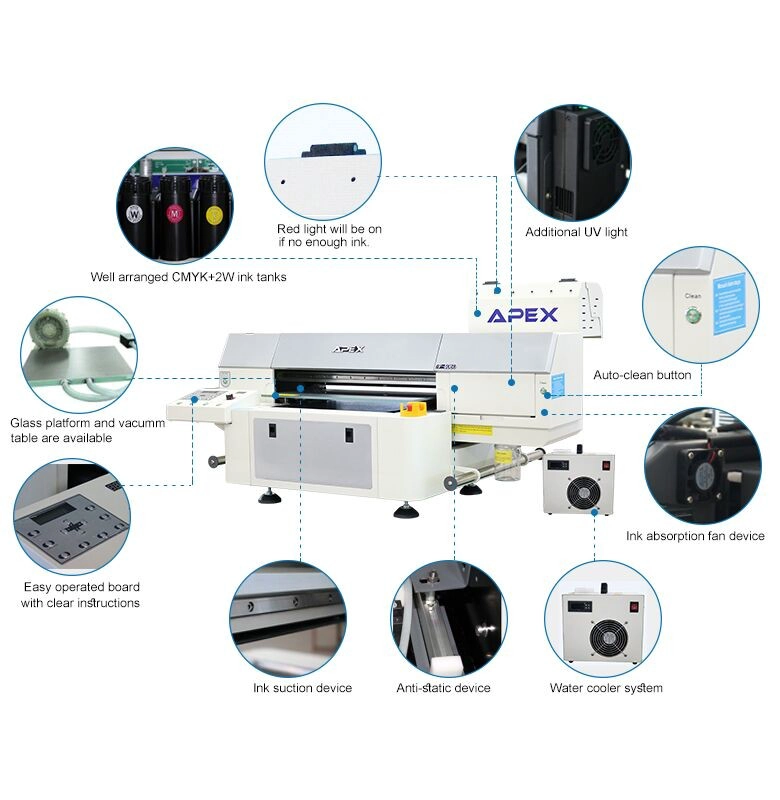

UV Flatbed Printer Auto Height Sensor Function:Smartly Detect the Distance between Media and Printer Head
Power Clean: Cleaning Can be Made Without Connection to PC.

Water Cooling System: Water's high specific heat capacity, density, and thermal conductivity,  allows  water to transmit heat more easily. So it can more efficiently cool down UV LED light, in  order to prolong  its lifetime.

UV Light Brightness Adjust: Adjust UV light Brightness to Fit Curing Needs.

Special Fixtures, Bulk Production: To increase the output of production for special product, Apex  supplys specific fixture which makes it possible to implement a batch printing. Contact Now, to custom  your unique fixtures for special promotion  items.

Vacuum table: 
 1.Consists of a typically flat rigid surface in which exists small holes to evacuate air from under a workpiece, as  to apply varying vacuum from between the desired workpiece and table to maintain a clamping force.
 2.To make the soft printing materials like leather more smooth and level, so as to get the best printing result.



This Apex N4060 UV printer is ideal for printing varnish, high precision effect and printing on mugs.




Microtec/Apex's main objective is to support all our customers, who can manage their APEX UV printers activities without interruption. So Apex offers FREE SPARE PARTS with a quantitative order and the following guarantee:
* Free lifetime technical support online for all apex printers.
* One year warranty for the whole machine excluding printer heads
* Three months warranty on the consumable parts like dampers, cap tops, etc.
* Five professional English engineer available to provide onsite service if customer needed(customers pay onsite service charge, bear tickets and accommodation)
