Toshaba CE4 Print head 250*130cm Large Format UV Printer-UV2513Toshaba CE4 Print head 250*130cm Large Format UV Printer-UV2513Toshaba CE4 Print head 250*130cm Large Format UV Printer-UV2513Toshaba CE4 Print head 250*130cm Large Format UV Printer-UV2513Toshaba CE4 Print head 250*130cm Large Format UV Printer-UV2513

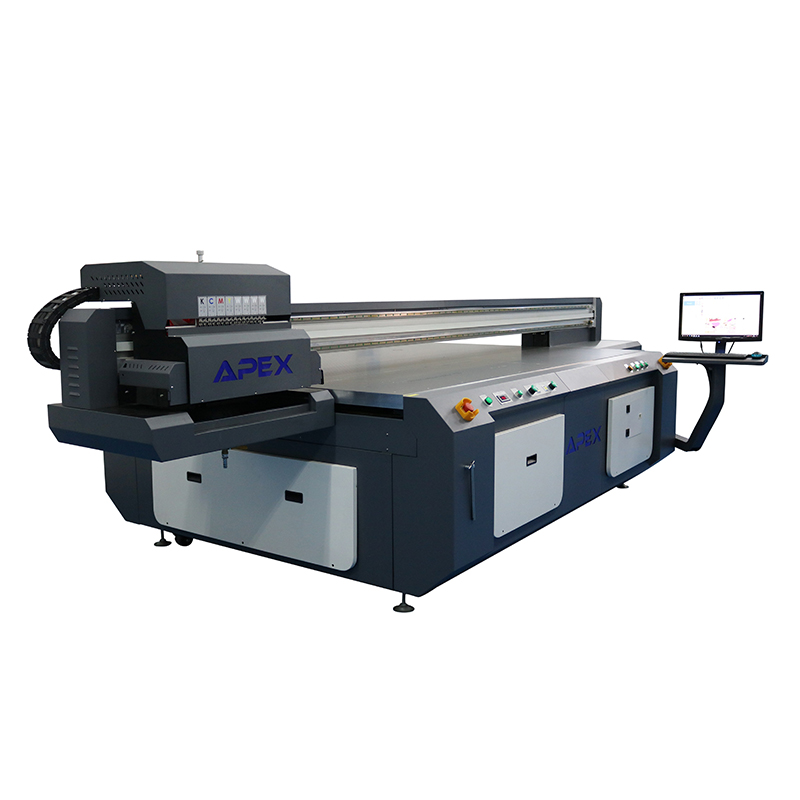

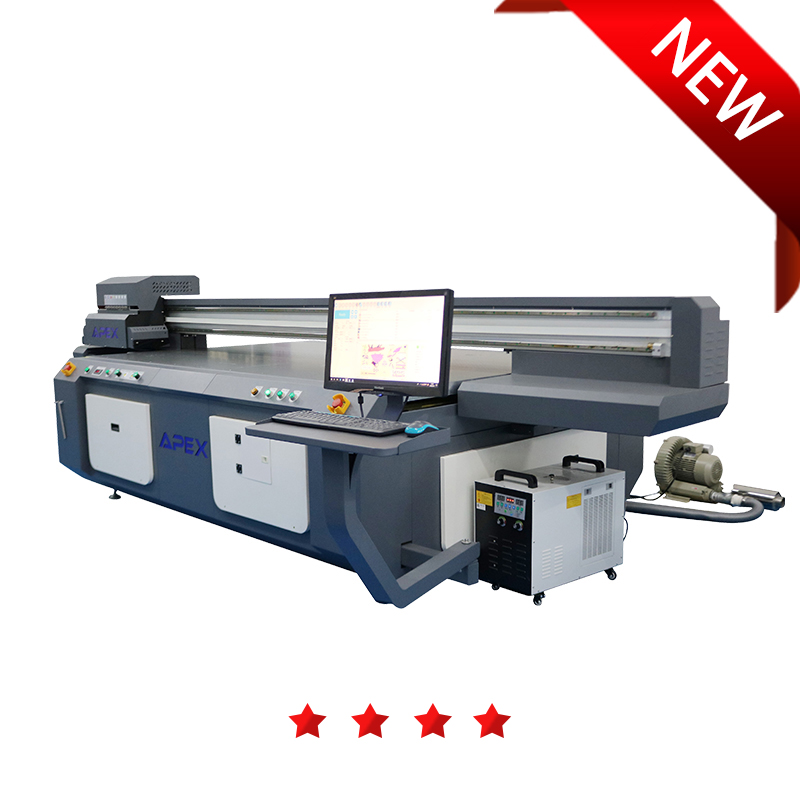

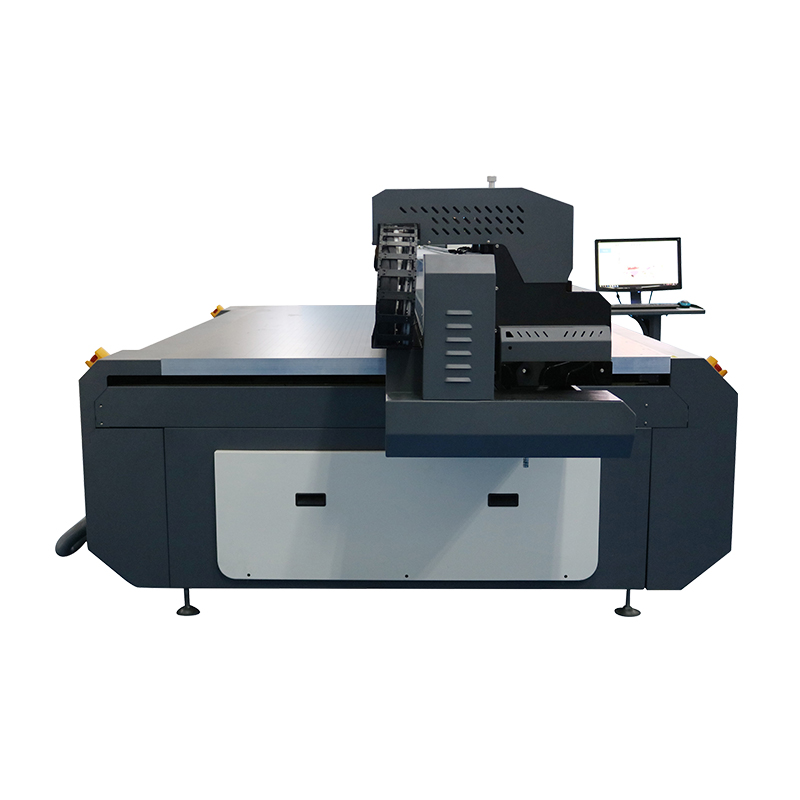

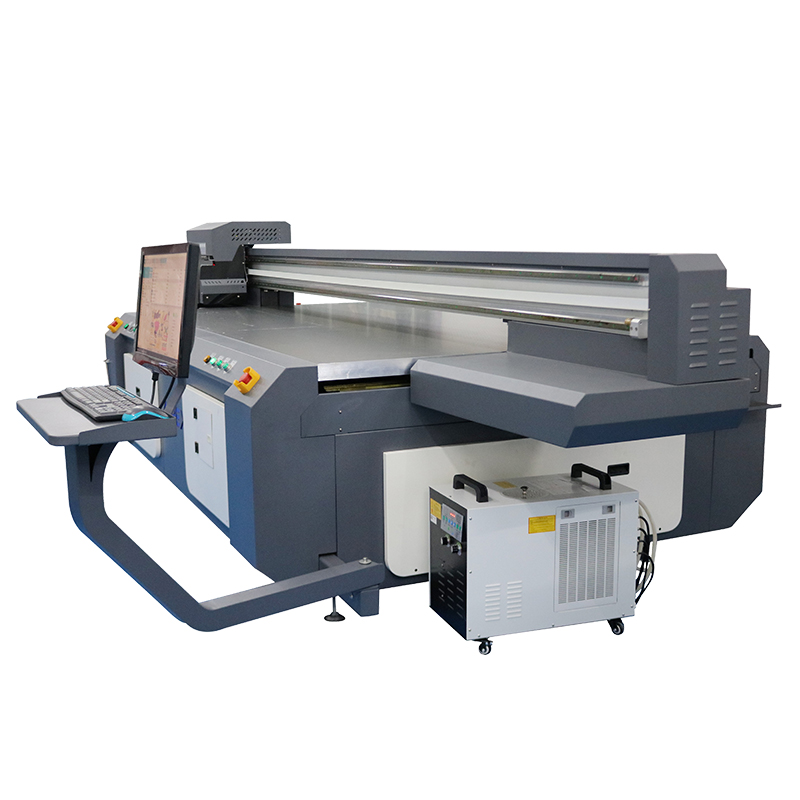

Toshaba CE4 Print head 250*130cm Large Format UV Printer-UV2513

  • Model No.: UV2513
  • Machine Type: Automatic, Flatbed, UV LED Lamp, Digital Printer
  • Max. Print Format: 98.43""*51.18""(2500*1300cm)
  • Max. Print Gap: 10cm
  • RIP Software: PhotoPrint RIP
  • Software Language: English/ Chinese"
APEX UV2513 digital large format UV Flatbed Printer is a gerneral large format size suitable for both bulk production and big size printing demands. It is installed with 5~10 Toshiba head and designed for industrial production with fast printing speed, which can print on almost any material directly. With UV light irradiating during printing procedure, images on object surface dry fast, scratch resistance and uv-proof.

This uv led printer use Toshiba CE4 printer heads which can print on any flat material &objects, like pens, acrylic, wood, metal, crystal, plastic, phone cases etc. With Toshiba CE4 printer heads, the printing is very fast and the quality is perfect in details, even human face in full size printing.

If you need an industrial large format UV printer, APEX UV2513 is highly recommended, whether you need an advertising PVC board uv printer, phone case uv printer, or acrylic uv printer, etc.

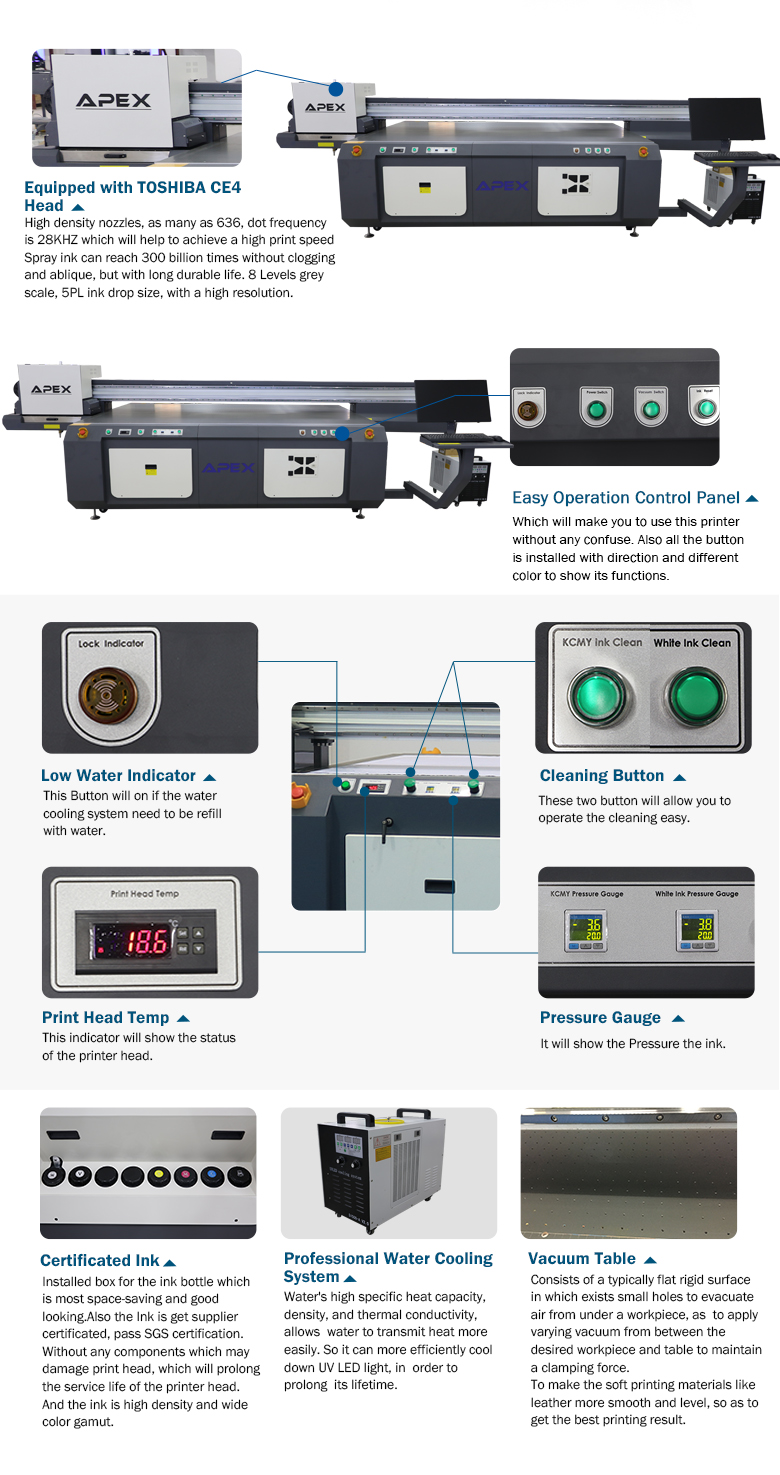

Equipped with TOSHIBA CE4 Print Head
High density nozzles, as many as 636, dot frequency is 28KHZ which will help to achieve a high print speed. Spray ink can reach 300 billion times without clogging and ablique, but with long durable life. 8 Levels grey scale, 5PL ink drop size, with a high resolution.

Certificated Ink
Ink is get supplier certificated, pass SGS certification. Without any components which may damage print head, which will prolong the service life of the printer head. And the ink is high density and wide color gamut.

High Precision Printer Head Base Board

Printer head base board is OEM by professional factory with high-precise process. Error is less than 0.01mm to improve print accuracy.

Stable Accessories
All accessories of the ink system are certified and stable working, without any chemical reaction with ink.

Professional RIP software
User interface is simple, easy to understand and operate. Efficient workflow, and excellent image handing, rich color management tools, professional color processing.

Printer Head Anti-Collision System
Printer Head is installed with Anti-collision system to prevent any damage from accidents caused by human error or material deformation.


 Model No.  UV2513
 UV Curing System  UV LED Water Cooling System
 Materials to Print  metal, plastic, glass, wood, ceramics, acrylic, leather, pen, etc.
 Max. Print Format  98.43"*51.18" (250*130cm)
 Max. Print Gap  10cm(3.94'')
 Power Consumption  3800W
 Power Requirement  50/60HZ   220V(±10%)<20A
 Environment  20 ~ 28C  HR40-60%
 Print Head  Toshiba CE4  (Nozzles 318X2), printer heads can be 5~10pcs.
 RIP Software  SAi PhotoPrint DX Plus
 Software Language  English/Chinese/German/Italian/Japanese/Korean/French/Finnish/Dutch/Portuguese/Spanish
 Operation System  Windows 7 /Windows 8 /Windows10
 Ink Type  UV ink

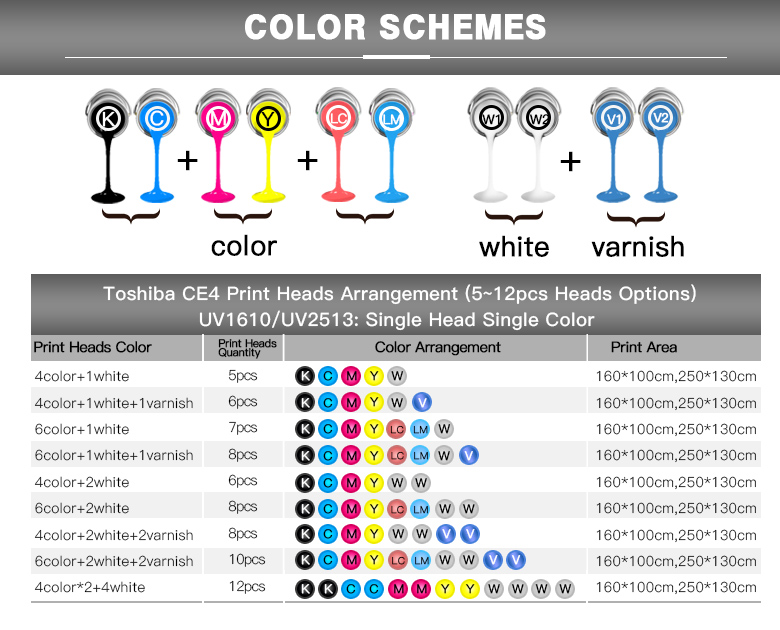

 Ink Color  KCMYWW /KCMYLcLmWW /KCMYLcLmWWVV
 Ink Supply System  CISS Built Inside With Ink Bottle
 Interface  USB3.0
 Machine Gross Weight  1300kg
 Packing Dimension  467*227*170cm
 Packing  Strong Wooden Package with Full Foam




Digital Product Cover >>

Apex UV flatbed printers are widely used in a variety of industries:

Advertising industry: ABS, Polyurethane, PET, Acrylic, MDF, PVC, etc,
for signs, banner, backlight, tags, etc.

Leather industry: Authentic leather, fake leather, PU, etc. for shoes, bags, cases, etc.

Background wall: Glass, tiles, aluminum, wood, paper, etc.

Furniture industry: Wood, glass etc. for cupboard, sofa, doors, etc.

Electronic accessories: Mobile phone cases, industrial products cases, etc.

Gifts printing: Plastics, USB memory card, Stone, Pens, name card case,
glass arms, wrist watch belt, wrist bands, etc.

Decoration: Exhibition stand decoration, home decoration, wallpaper, hotel decoration, etc.

Industrial printing: membrane switch, touch panel, home appliance printing, etc.


This Apex UV2513 UV printer is ideal with industrial use and can directly print on any flat materails with fast speed and high precision.



Microtec/Apex's main objective is to support all our customers, who can manage their APEX UV printers activities without interruption. So Apex offers FREE SPARE PARTS with a quantitative order and the following guarantee:
* Free lifetime technical support online for all apex printers.
* One year warranty for the whole machine excluding printer heads
* Three months warranty on the consumable parts like dampers, cap tops, etc.
* Five professional English engineer available to provide onsite service if customer needed(customers pay onsite service charge, bear tickets and accommodation)
